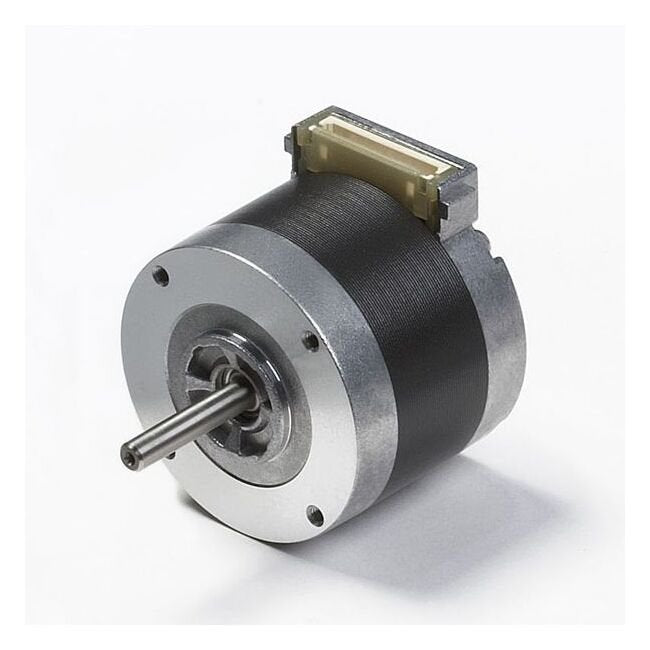

High Resolution NEMA 17 Stepping Motor - KA50 Series (0.9 Degree/Step)
High Resolution NEMA 17 Stepping Motor - KA50 Series (0.9 Degree/Step)
SKU:STE-b26d07
High precision NEMA 17 motor with 0.9° step angle, ideal for precision applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Resolution NEMA 17 Stepping Motor - KA50 Series (0.9 Degree/Step)
$89.99
Quantity: 1
Claim Your Seller Account
High Resolution NEMA 17 Stepping Motor - KA50 Series (0.9 Degree/Step)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KA50 Series High Resolution Motor is a top-of-the-line NEMA 17 stepping motor designed for precision and reliability. With a step angle of 0.9 degrees/step, this motor offers high torque, low vibration, silent operation, and exceptional position accuracy. Utilizing advanced three-dimensional magnetic field analysis and a robust design, it ensures optimal performance in various applications. The motor frame size, voltage per phase, current per phase, and other specifications meet industry standards for quality and efficiency, making it ideal for both consumer and institutional buyers.
Product Specifications
Additional Information 0
a1241.jpg | a1243.jpg | Explanation of Dynamic Torque Curves | KA50 Series 2 Phase Hybrid Motors (1.8 Degree/Step) - Nema 17 (KA50KM2) | KA50JM2-551.jpg
Customize 0
Custom Designs
Dimensions 0
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
1.7 oz·in | 12 mN·m
Specifications Holding Torque
43 oz·in | 304 mN·m
Specifications Inductance Per Phase
1.6 mH
Specifications L
1.57 in | 40 mm
Specifications Motor Frame Size
NEMA 17
Specifications Product Type
High Resolution Motor
Specifications Reference Part Number
KA50JM1-501
Specifications Resistance Per Phase
1.23 Ω
Specifications Rotor Inertia
0.4 oz·in² | 70 g·cm²
Specifications Series
2 Phase Round KA
Specifications Step Angle
0.9 deg./step
Specifications Type
KA50 Series High Resolution Motors (0.9 Degree/Step) - NEMA 17
Specifications Voltage Per Phase
2.46 V
Specifications Weight
300 g | 0.7 lb
Specifications Winding Method
Unipolar
Torque Curve 0
