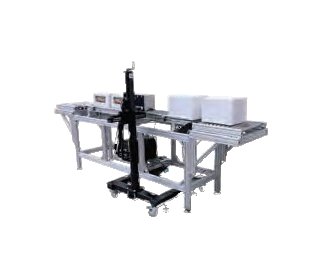

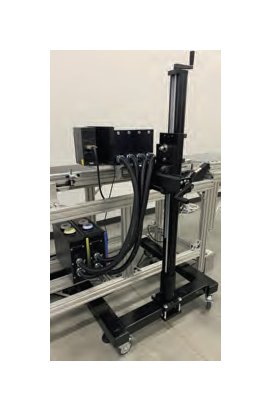

High Resolution Single Pass Inkjet Printing System - 360 DPI Vertical Print
High Resolution Single Pass Inkjet Printing System - 360 DPI Vertical Print
SKU:SIN-240bfc
Revolutionize printing with the High Resolution Single Pass Inkjet System - 360 DPI vertical print, 3,600 DPI horizontal, CMYK+W spot colors. Boost efficiency and quality!
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
High Resolution Single Pass Inkjet Printing System - 360 DPI Vertical Print
$12,999.99
Quantity: 1
Claim Your Seller Account
High Resolution Single Pass Inkjet Printing System - 360 DPI Vertical Print
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Resolution Single Pass Inkjet Printing System is a game-changer for production environments, offering a vertical print resolution of 360 DPI and a horizontal print resolution of 3,600 DPI. With a blazing print speed of 500 fpm, this system delivers exceptional quality in full color CMYK with spot colors. Its versatile compatibility with non-porous and porous substrates, along with True Type Fonts support, ensures precise and customizable printing. Benefit from on-demand printing, flexibility, SKU reduction, and tool cost reduction with this cutting-edge technology.
Product Specifications
Advantages Advantages
Easy message creationMessage height in increments of 4.25"No limit on number of headsPrints from software that can render imagesEvery message can be differentUltra fast data transfer timesEthernet connectionConnect with any ERPControlled from a PC or tablet no controller needed
Benefits Benefits
Print On DemandShort or Long RunsFlexibilitySKU ReductionObsolescence ReductionTool Cost Reduction
Communications Comm Protocol
Several comm protocols are supported Ethernet
Communications External Database
Per Storage Capacity
Communications Remote Assist
Yes
Electrical Frequency
50 Hz | 60 Hz
Electrical Power Supply Alternating Current Ac Voltage
110 to 240 V
Electrical Power Supply Phase
Single
Electronics Comm Ports
1 Trigger Input | 2 USB Ethernet) | 8 Configurable Inputs | 8 Configurable Outputs | Ethernet (2 RS232 | Universal Serial Bus (USB)
Electronics Inputs
Per ink/control system which can handle 2 colors.
Electronics Outputs
2 encoder
Environment Non Condensing Relative Humidity
90 %
Environment Operating Temperature
5 to 40 ºC | 40 to 110 ºF
Optional Alarm Beacons Customizations Of Systems Integrations
Per Customer Request
Optional Vision System
Any brand
Printer Font Types
True Type Fonts
Printer Ingress Protection Ip Rating
Currently not limited | Ink Supply - Ingress Protection (IP42) | Other IPs Available | Printhead - Ingress Protection (IP42)
Printer Print Colors
CMYK W Spot Colors
Printer Print Height
Increments of 4.25 in
Printer Print Length
No limit
Printer Print Orientation
360 (Side, Down and Up)
Printer Print Substrates
Non-Porous | Porous
Technical Specs Barcodes
All available
Technical Specs Horizontal Print Resolution
3,600 dpi
Technical Specs Print Speed
500 fpm
Technical Specs Vertical Print Resolution
360 dpi
User Interface Controller
PC-Tablet-Smart Phone
User Interface Message Editor
Embedded Any software that can render an image
User Interface Variable Data Fields
No limit
