High Security 1200 lb Magnetic Gate Lock
High Security 1200 lb Magnetic Gate Lock
SKU:ACC-7e87e5
Ensure maximum security with the High Security 1200 lb Magnetic Gate Lock featuring 1200 lb holding force and fail-safe release.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Security 1200 lb Magnetic Gate Lock
$249.99
Quantity: 1
Claim Your Seller Account
High Security 1200 lb Magnetic Gate Lock
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

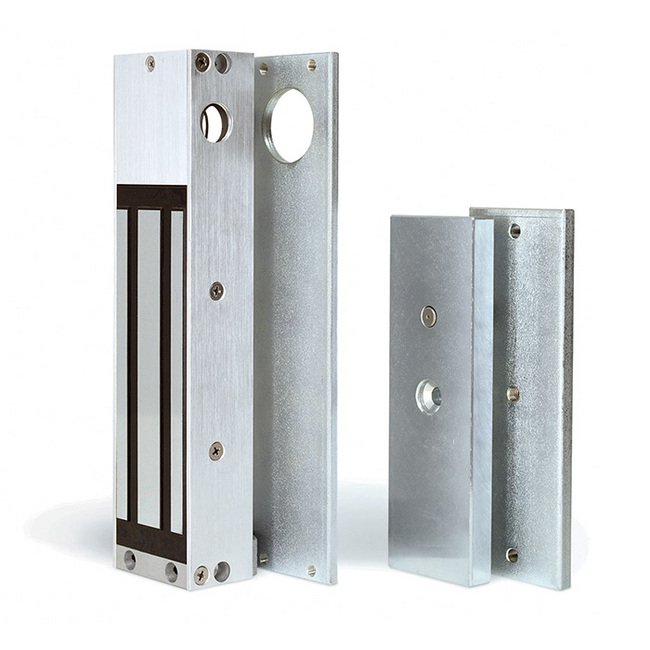

Enhance access control and security with the High Security 1200 lb Magnetic Gate Lock. This robust magnetic lock offers a holding force of 1200 lb, a fail-safe release system, and a durable steel construction with vandal-resistant properties. Ideal for outdoor use, it features predrilled and tapped conduit holes for easy installation. The quick release "pop" button ensures instant access in case of emergencies. Trust in its long-lasting performance as it has no moving parts that can wear out, making it suitable for gated communities, apartment complexes, and other high-security applications.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Wide range of high-quality electro-magnetic Locks and Brackets to accommodate most access control locking requirements.
Applications Applications
Gated CommunitiesApartment ComplexesCondominium/Resident HallMixed UseCommercial/IndustrialMaximum Security
Key Features Key Features

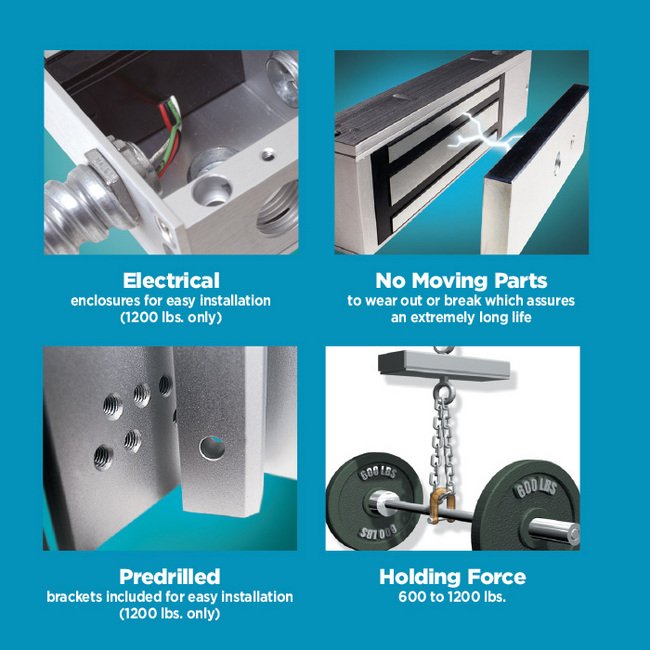

1200 Lb holding force magnetic lock.Built-in electrical enclosure with predrilled and tapped conduit holes.Steel (can be welded) predrilled and tapped lock and armature mounting brackets.12 or 24 Volt DC operation.Top, bottom or face mounting.Quick release "pop" button on armature.Magnetic locks have no moving parts to wear out or break which assures a locking device with an extremely long life cycle.Electromagnetic locks are vandal resistant making them ideal for practically any application When wired with fire alarms, magnetic locks immediately release the gate that they are securing, assuring that fire entry / exit lanes are open.Quick release "pop" button assures instant release when power is removed.Mounting brackets available: Lock mounting bracket, fully weldable .25" steel plate, predrilled and tapped. Armature mounting bracket, fully weldable 0.25" steel plate, predrilled and tapped.
Specifications Direct Current Dc Voltage
12 V | 24 V
Specifications Holding Force
1200 lb
Specifications Limited Factory Warranty
5 y
Specifications Lock Type
Magnetic
Specifications Mounting Type
Surface
Specifications Release Use
Fail Safe
Specifications Use
Single Gate
Technical Specifications Technical Specifications

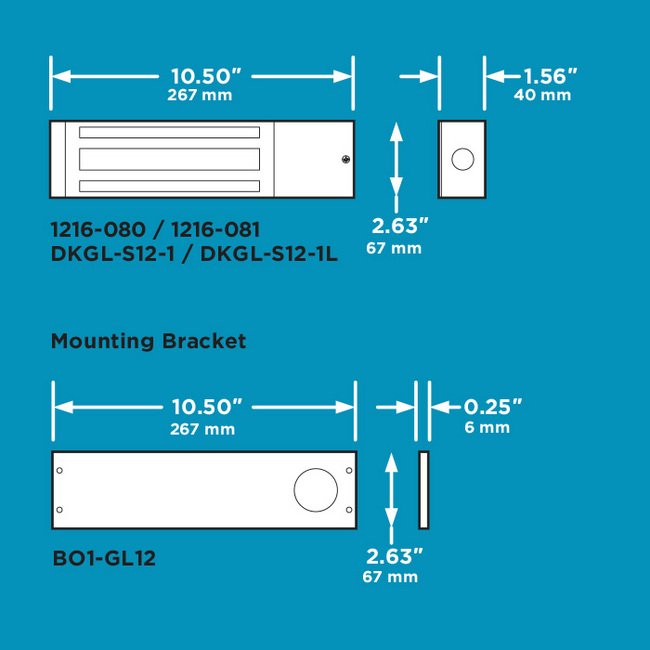

1216-080 LOCK KIT1200 Lb holding force magnetic lock.Built-in electrical enclosure with predrilled and tapped conduit holes.Steel (can be welded) predrilled and tapped lock and armature mounting brackets.12 or 24 Volt DC operation.Top, bottom or face mounting.Quick release "pop" button on armature.1216-081 LOCK KITSame as the 1216-080 kit plus the lock includes a built-in signal relay to indicate the status of the magnetic lock; secure or unsecured.
