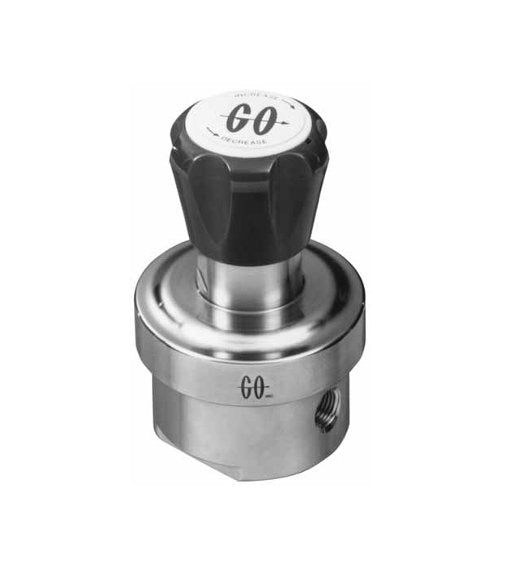

High Sensitivity Pressure Reducing Regulator - PR-7LF
High Sensitivity Pressure Reducing Regulator - PR-7LF
SKU:GOP-40d964
Precise low outlet pressure control for analytical instrumentation needs. Stainless steel or brass construction ensures durability and efficiency.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High Sensitivity Pressure Reducing Regulator - PR-7LF
$299.99
Quantity: 1
Claim Your Seller Account
High Sensitivity Pressure Reducing Regulator - PR-7LF
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Sensitivity PR-7LF Pressure Reducing Regulator is specifically crafted to deliver precise low outlet pressure control for analytical instrumentation needs. With a unique blend of the PR-7 Series' large diaphragm sensing area and the PR-1 Series' low flow seat assembly, this regulator ensures pressure control down to 10 inches of water with unparalleled accuracy. Available in stainless steel or brass, and even special alloys on request, the PR-7LF guarantees top-notch performance and durability.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Options Options
EB33
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Tamper-Proof, Stainless Steel
Specifications Flow Coefficient Cv
0.06
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration

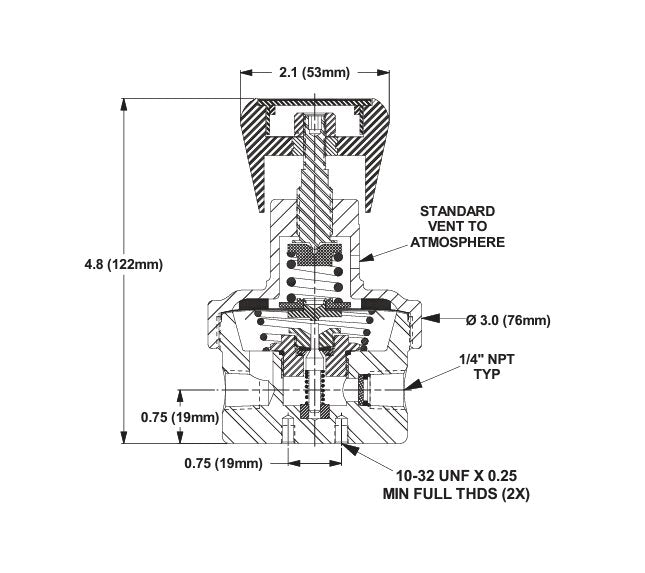

C - See Diagram for Port Configuration
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
