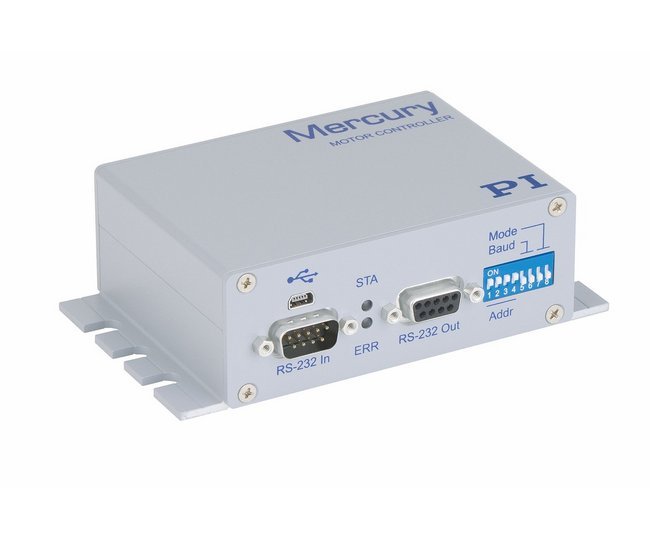

High-Speed 1-Axis Motion Controller for DC Motors
High-Speed 1-Axis Motion Controller for DC Motors
SKU:MOT-29aa73
Advanced 1-Axis Motion Controller for DC Motors with high-speed encoder input, powerful macro programming language, and extensive software compatibility.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
High-Speed 1-Axis Motion Controller for DC Motors
$899.99
Quantity: 1
Claim Your Seller Account
High-Speed 1-Axis Motion Controller for DC Motors
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

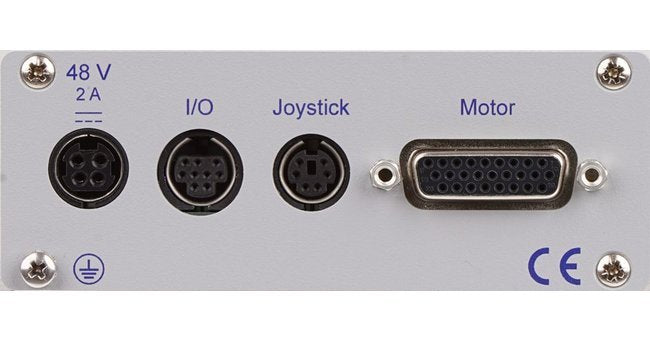

The High-Speed 1-Axis Motion Controller for DC Motors is designed for precise micropositioning systems, offering advanced features such as high-speed encoder input up to 60 MHz, a powerful macro programming language for stand-alone operation, nonvolatile memory for macros and parameters, and a data recorder. With daisy chain networking capability and compatibility with various software including NI LabVIEW, C, C++, MATLAB, and Python, this motion controller provides seamless integration for motion control of PI positioning systems with DC motors. It supports PID control, motor brakes, and features USB and RS-232 interfaces for commanding, A/B quadrature encoder input, and analog/digital I/O lines for automation.
Product Specifications
More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
