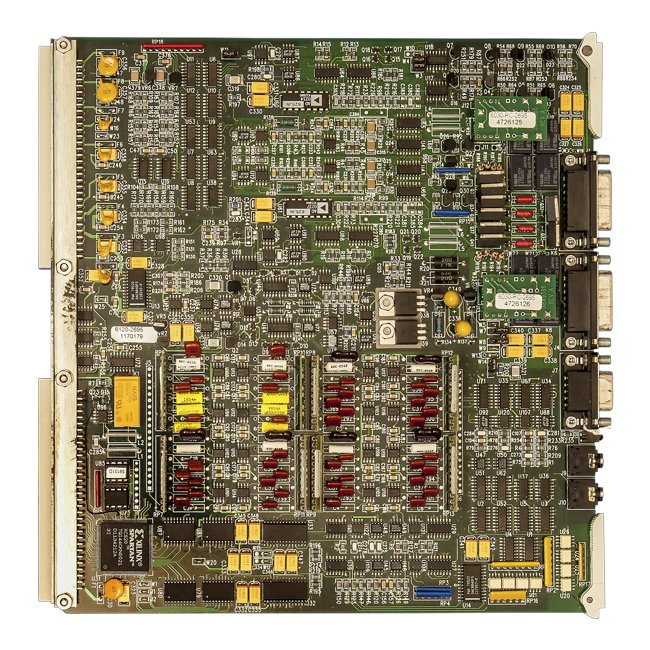

High-Speed 2-Channel Signal Amplifier-Digitizer
High-Speed 2-Channel Signal Amplifier-Digitizer
SKU:INT-3a24b2
Versatile high-speed amplifier-digitalizer for accurate signal conditioning, dual inputs, up to 100 kHz bandwidth.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
High-Speed 2-Channel Signal Amplifier-Digitizer
$2,599.99
Quantity: 1
Claim Your Seller Account
High-Speed 2-Channel Signal Amplifier-Digitizer
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Speed 2-Channel Signal Amplifier-Digitizer is a versatile solution for precise signal conditioning, offering dual inputs for strain/bridge or IEPE transducers. With programmable bridge configurations, automatic zero & balance, and gains up to 5,000, this amplifier ensures accurate measurements with up to 100 kHz bandwidth. It features dual buffered 10 Volt analog outputs and programmable low-pass filters, making it ideal for various applications requiring high accuracy and fast digitizing speeds.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
6030 - 50 kHz (-3 dB) for gains to 1,000, 20 kHz for gains above 1,000 | 6030HF - 100 kHz (-3 dB) for gains to 1,000, 50 kHz for gains above 1,000
Amplifier Cm Voltage
±10 Volts
Amplifier Common Mode
60 dB plus gain in dB to 120 dB for balanced input and 110 dB for a 350 Ohm source unbalanced, DC to 60Hz.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Linearity
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and above.
Amplifier Gain Stability
±0.02% for 30 days, ±0.005%/ºC.
Amplifier Input Impedance
50 Megohms, shunted by 500 pF.
Amplifier Input Protection
150 Volts differential, 130 Volts common mode without damage.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and above.
Amplifier Noise 10 Khz
2.0 5V RTI plus 0.3 mV RTO, RMS.
Amplifier Overload Recovery
Recovery time is 120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Range
±2 mV to ±10 Volts.
Amplifier Slew Rate
5 V/µS
Calibration Voltage Calibration
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.01% accuracy. Attenuator output may be connected to bus for external monitoring.
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with 10.01% accuracy. Attenuator output may be connected to bus for external monitoring.
Current Excitation Transducer Power Current Excitation
Programmable 0.1mA to 51.2 mA with 12.5 5A resolution. Calibrated 5 mA steps 10.1%.
Current Excitation Transducer Power Current Excitation Noise
25A or 55V peak-to-peak DC to 10 kHz.
Current Excitation Transducer Power Current Monitor
Excitation voltage or current is read by a program instruction.Accuracy is 10.2%.
Current Excitation Transducer Power Current Regulation
±0.01% or ±0.1 µA for 10% line change.
Current Excitation Transducer Power Current Stability
±0.01% or 125A for 30 days. Temperature coefficient is less than ±0.005% or 115A/0C.
Current Excitation Transducer Power Minimum Compliance
0.1 to 10 Volts
Excitationtransducer Power Compliance Constant Current
0.1 to 10 V
Excitationtransducer Power Current Constant Voltage
50 mA limited to 70 mA maximum.
Excitationtransducer Power Monitor Constant Current
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
Excitationtransducer Power Monitor Constant Voltage
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
Excitationtransducer Power Noise Constant Current
2 µA or 5 µV peak-to-peak DC to 10 kHz.
Excitationtransducer Power Noise Constant Voltage
200 µV peak-to-peak, DC to 10 kHz
Excitationtransducer Power Output Range Constant Current
Programmable 0.1 mA to 51.2 mA with 12.5 µA resolution. Calibrated 5 mA steps ±0.1%.
Excitationtransducer Power Regulation Constant Current
±0.01% or ±0.1 µA for 10% line change.
Excitationtransducer Power Regulation Constant Voltage
Each channel individually regulated. ±0.01% over input voltage range and no-load to full load.
Excitationtransducer Power Stability Constant Current
±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/ºC.
Excitationtransducer Power Stability Constant Voltage
±0.01% for 30 days. Temperature coefficient less than ±0.005 %/ºC.
Excitationtransducer Power Voltage Constant Voltage
Programmable from 0.1 to 10.24 Volts with 2.5 mV resolution. Calibrated 1-Volt steps ±0.1%.
Overview Analog Bandwidth
50 kHz | 100 kHz
Overview Excitationtransducer Power
Current | ICP | Voltage
Voltage Excitation Transducer Power Voltage Excitation
Programmable from 0.1 to 10.24 Volts with 2.5mV resolution.Calibrated 1-Volt steps ±0.1%. 50 mA limited to 70 mA maximum.
Voltage Excitation Transducer Power Voltage Excitation Noise
200 5V peak-to-peak, DC to 10 kHz
Voltage Excitation Transducer Power Voltage Excitation Regulatio
Each channel individually regulated.10.01% over input voltage range and no-load to full load.
Voltage Excitation Transducer Power Voltage Excitation Stability
±0.01% for 30 days. Temperature coefficient less than ±0.005%/ºC.
Voltage Excitation Transducer Power Voltage Monitor
Excitation voltage or current is read by a program instruction. Accuracy is 10.2%.
