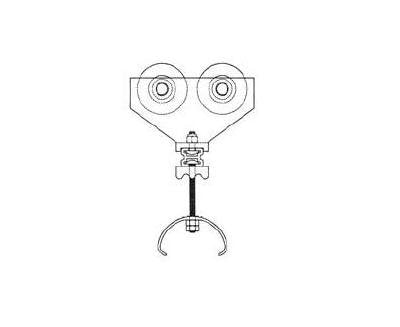

High-Speed Cable Trolley for Flat Cable I Beam Festoon Systems
High-Speed Cable Trolley for Flat Cable I Beam Festoon Systems
SKU:CRA-30ab5b
High-speed cable trolley for flat cable I beam festoon systems, optimized for 55 lb load capacity and 200 fpm speed. Durable, customizable, and efficient for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Speed Cable Trolley for Flat Cable I Beam Festoon Systems
$89.99
Quantity: 1
Claim Your Seller Account
High-Speed Cable Trolley for Flat Cable I Beam Festoon Systems
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

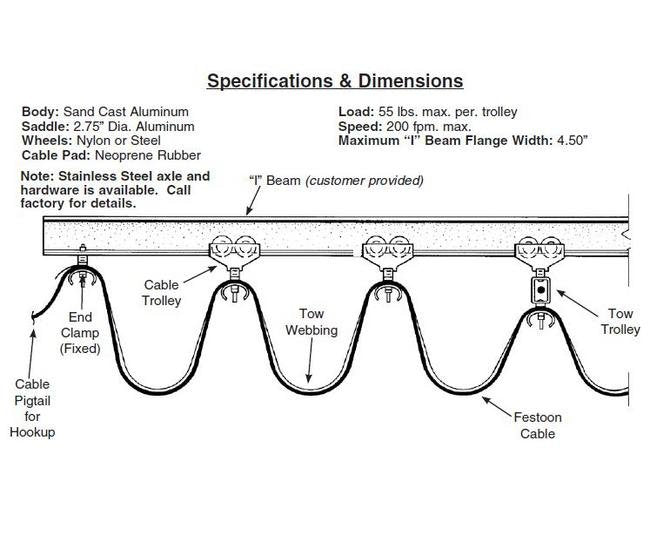

The High-Speed Cable Trolley for Flat Cable I Beam Festoon Systems is designed for optimal performance in crane control and electrification applications. Featuring a sturdy construction with a 5" long body and a 2.75" diameter x 4" wide saddle, this trolley can efficiently handle a maximum load of 55 lbs. The sand-cast aluminum body type and steel wheel material ensure durability and smooth operation, while the neoprene rubber cable pad provides secure cable support. With a speed of 200 fpm, this trolley is suitable for high-speed operations, and its stainless steel axle and hardware option further enhances its longevity. Contact us to learn more about customizations and specifications to meet your specific requirements.
Product Specifications
Specifications Body Type
Sand Cast Aluminum
Specifications Cable Pad
Neoprene Rubber
Specifications Load
55 lb
Specifications Maximum I Beam Flange Width
4.50 in
Specifications Saddle Diameter
2.75 in
Specifications Speed
200 fpm
Specifications Weight
2.0 lb
Specifications Wheel Material
Steel
