High-Speed CB Drum Hub Assembly
High-Speed CB Drum Hub Assembly
SKU:CLU-cb9745
Reliable High-Speed CB Drum Hub Assembly for industrial clutch or brake functions.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
High-Speed CB Drum Hub Assembly
$699.99
Quantity: 1
Claim Your Seller Account
High-Speed CB Drum Hub Assembly
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Speed CB Drum Hub Assembly is engineered for reliable clutch or brake functions in demanding industrial settings. Suitable for high-speed cyclic operations, coupling, and power transmission, this assembly ensures top performance and durability. Featuring a Size of 18CB500, Tapped Holes Type, and a sturdy Weight of 74 lb | 34 kg, it offers precise Inertia of 6.50 lb·ft² | 0.27 kg·m². With a Minimum Bore of 2.25 in | 57 mm and a Maximum Bore of 4.75 in | 121 mm, along with other dimensions, it meets the exacting standards of industrial applications.

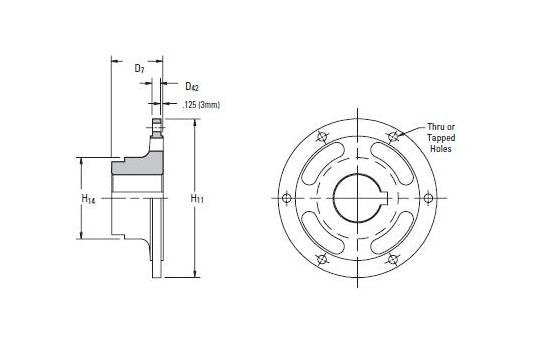

Product Specifications
Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
5.75 in | 146 mm
Specifications Dimension H11
15.00 in | 381 mm
Specifications Dimension H14
7.50 in | 191 mm
Specifications Inertia
6.50 lb·ft² | 0.27 kg·m²
Specifications Maximum Bore
4.75 in | 121 mm
Specifications Minimum Bore
2.25 in | 57 mm
Specifications Size
18CB500
Specifications Type
Tapped Holes
Specifications Weight
74 lb | 34 kg
