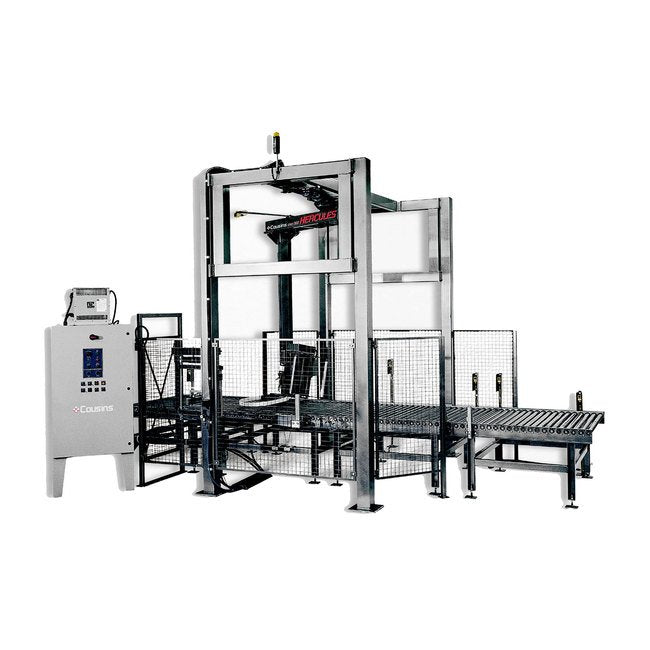

The Model 7100 Conveyorized Automatic Stretch Wrapper is a top-tier packaging solution designed to optimize production efficiency. With a remarkable production speed of up to 65 loads per hour, this machine boasts quality components and features that eliminate film breaks, minimizing downtime. Equipped with advanced controls, a super rapid film carriage elevator, and a heavy-duty arm/tower design, this stretch wrapper ensures reliable performance and consistent stretch quality. Ideal for high-volume operations, it offers a maximum load capacity of 4000 lb and can accommodate various load sizes. Enhance your packaging process with the Model 7100, backed by a 3-year warranty on components and 5-year warranty on steel fabrications.
Product Specifications
Additional Information Additional Information
Your system can be equipped with any device that the application requiresAdditional ConveyorsAutomatic Top Sheet DispensersTop Platen/Hold Down Device90º TransfersHeat Seal Device to Secure Film TailsTurntablesFrame Extensions for Larger Load SizesNon-standard PLC/ControlsLifting Device to Wrap Under PalletScales
Armtower Design Armtower Design
Heavy-duty ring bearing - chain/sprocket drive.1 - 22 RPM 1 HP DC variable speed motor.Dust tight slip ring assembly.Final revolution deceleration and positive stop alignment.Heavy Duty Formed/Structural Steel.Electro-static powder coated paint finish.5 Year Warranty on Steel Fabrications.
Controls Controls
Allen-Bradley MicroLogix 1400 PLC HMI touchscreen operator interface panel.Wrap bypass mode selector switch.Separate film carriage elevator raise & lower speed controls.Separate 1 to 12 revolution top & bottom wrap control.Broken film/out of film detection c/w automatic machine reset and fault beacon light.Rotary arm and film carriage elevator dynamic braking.NEMA 12 control panel and junction boxes.Dust tight slip ring assembly.Non-proprietary UL/CSA approved components.3 Year Warranty on components
Conveyors Conveyors

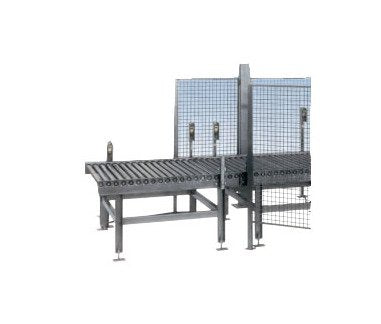

Standard system includes 5' infeed, 12' process and 5' outfeed conveyors.
Conveyors Effective Roller Width
54 in
Conveyors Rollers Diameter On 3 Inch In Centers
2.5 in
Conveyors Standard Conveyor Height
18 in
Features Features

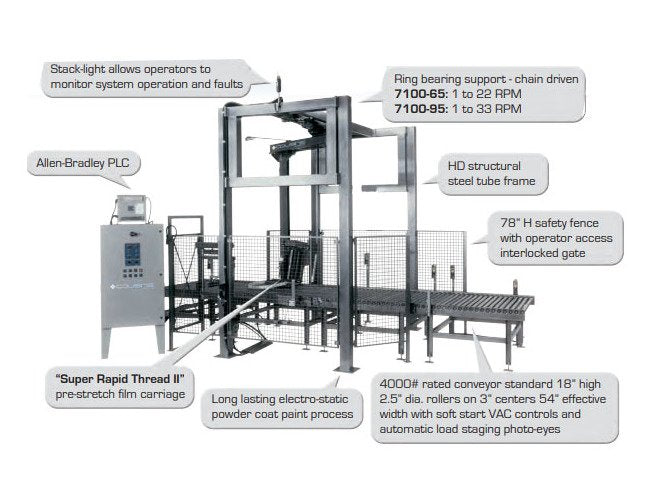

Stack-light allows operators to monitor system operation and faults.Allen-Bradley PLC."Super Rapid Thread II" pre-stretch film carriage.Long lasting electro-static powder coat paint process.4000# rated conveyor standard 18" high 2.5" dia. rollers on 3" centers 54" effective width with soft start VAC controls and automatic load staging photo-eyes.78" H safety fence with operator access interlocked gate.HD structural steel tube frame.Ring bearing support - chain driven 1 to 22 RPM.
Film Carriage Elevator Film Carriage Elevator
Super Rapid Thread II pre-stretch film carriage.Safety door with auto cut-off switch.Special Film Threading Device - Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside on the load.1/2 HP AC variable speed motor.1/2 HP DC.33% to 313% fixed stretch capability.Superior film-to-roller contact area.Lifetime warranty on pre-stretch rollers.
Load Capacity Maximum Load Capacity
4000 lb
Load Capacity Maximum Load Height
80 in
Load Capacity Maximum Load Length
52 in
Load Capacity Maximum Load Width
52 in
Load Capacity Minimum Load Height
24 in
Load Capacity Note For Load Capacity
Larger load size options are available.
Production Speed Note For Production Speed
Process rates will vary with load size, number of wraps & conveyor speed.
Production Speed Production Speed
1 to 65 loads/hr
Specifications Rotational Speed
1 to 22 rpm
