The High Speed Gantry Milling Machine is a precision tool designed for high-speed machining applications, featuring a Maximum Spindle Speed of 30,000 rpm and Spindle Taper of HSK E32. With a Spindle Motor Power of 4kW (S1) and 5kW (S6), this machine delivers exceptional performance and accuracy. The Working Table Size of 500 x 400 mm supports a maximum load of 200 kg, ensuring stability during operations. The machine prioritizes efficiency and productivity with a Travel range of 400 x 300 x 200 mm and Rapid Traverse speeds of up to 15 m/min. Equipped with AC servo motors and boasting a net weight of 2680 kg, this Gantry Milling Machine offers high precision, reliability, and durability for industrial applications.
Product Specifications
Features 0
High Accuracy: Economical Position High Productivity: Application DrivenHigh Efficiency: Utmost Performance Integration, Solution and Automation
Note 0

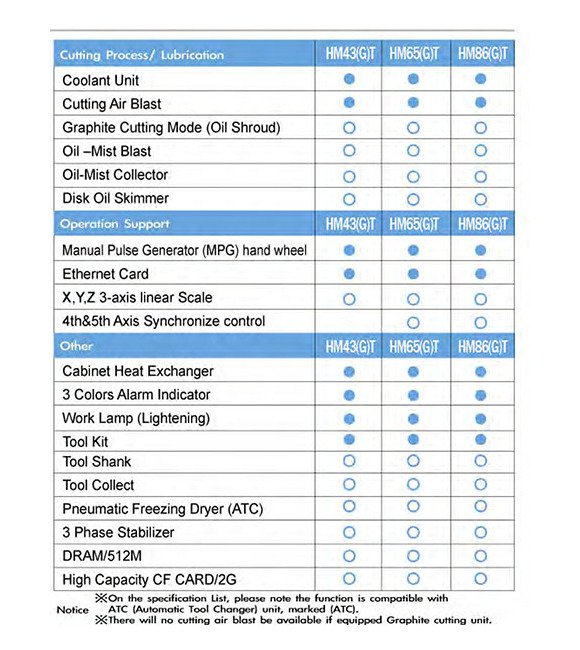

G means equipped graphite cutting unit.T means equipped ATC unit.
Specifications Distance From Table Surface To Spindle Nose
100 to 300 mm
Specifications Maximum Load Of Table
200 kg
Specifications Maximum Spindle Speed
30000 rpm
Specifications Maximum Total Power Consumption
11 kV·A
Specifications Net Weight
2680 kg
Specifications Rapid Traverse X Y Z
15 m/min
Specifications Spindle Motor Power S1
4 kW
Specifications Spindle Motor Power S6
5 kW

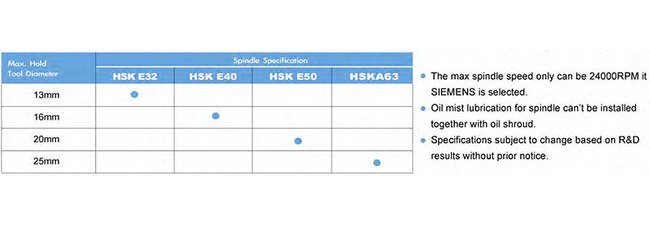

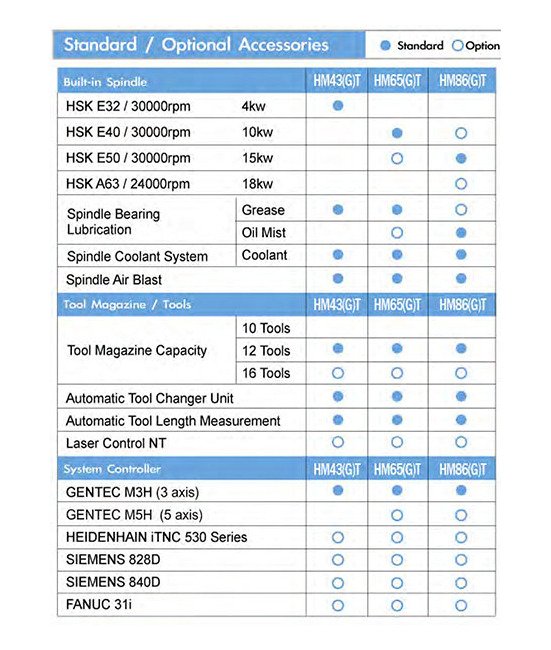

Specifications Spindle Taper
HSK E32
Specifications Travel X X Y X Z
400 x 300 x 200 mm
Specifications T Slot
14 x 4 x 100 mm
Specifications Working Table Size
500 x 400 mm
Specifications Work Feed
10 m/min
Specifications X Y Z Axis Servo Motor
AC servo motor
