High-Speed Sausage Linking System
High-Speed Sausage Linking System
SKU:SAU-0d3f49
Revolutionary LINKWEL-X High-Speed Sausage Linking System for precise sausage production in all casing types.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
High-Speed Sausage Linking System
$19,999.00
Quantity: 1
Claim Your Seller Account
High-Speed Sausage Linking System
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

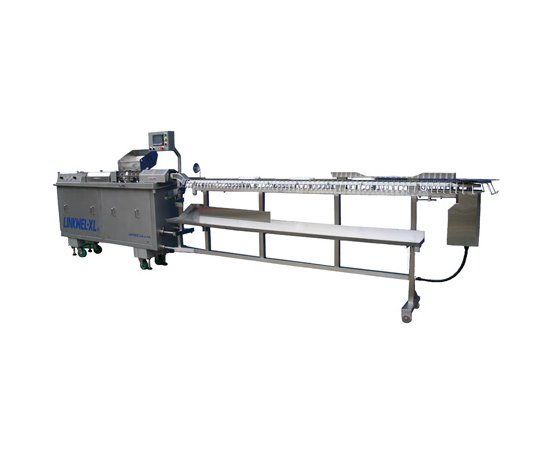

Upgrade your sausage production with the LINKWEL-X High-Speed Sausage Linking System, which revolutionizes the industry with precise equal-length, equal-weight sausages. Featuring servo motor technology, this system can handle all casing types seamlessly. It ensures consistent quality, ease of operation, and minimal casing breakage, meeting the highest industry standards.
Product Specifications
Casing Size Cellulose Casing Diameter
14.5 ~ 34 mm
Casing Size Cellulose Casing Shirred Length
325 ~ 440 mm
Casing Size Collagen Casing Diameter
13 ~ 32 mm
Casing Size Collagen Casing Shirred Length
280 ~ 300 mm
Casing Size Hog Casing Diameter
26 ~ 36 mm
Casing Size Hog Casing Shirred Length
180 mm
Casing Size Sheep Casing Diameter
14 ~ 25 mm
Casing Size Sheep Casing Shirred Length
180 mm
Electrical Requirements Emulsion Pressure
500 kPa | 5 bar | 72 psi
Electrical Requirements Maximum Emulsion Consumption Capacity
3,200 kg/h | 7,000 lb/hr
Electrical Requirements Phase
3
Electrical Requirements Pneumatical Consumption Capacity
1 L | 1,000 cm³/min | 60 in³/min
Electrical Requirements Pneumatic Pressure
520 kPa | 5.2 bar | 75 psi
Electrical Requirements Power
8,200 W
Electrical Requirements Water Consumption Capacity
1 L | 1,000 cm³/min | 60 in³/min
Electrical Requirements Water Pressure
280 to 410 kPa | 2.8 to 4.1 bar | 40 to 60 psi
Electrical Requirements Water Quality
Clean and Drinkable Water
Features Features

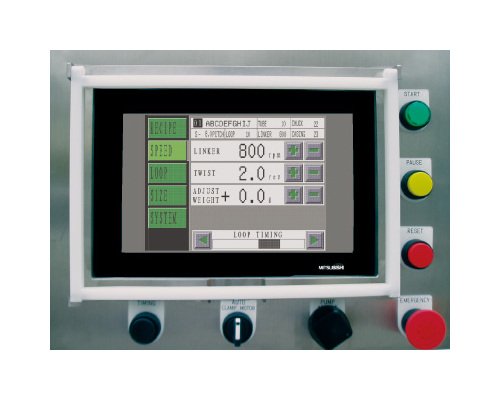

"LINKWEL-X" is the equal-length, equal weight, and equal-diameter sausage stuffing machine for natural casing.In the conventional production sausages of natural casing sausages, it was considered impossible to make weight and length of sausages constant. However, our new product "LINKWEL-X" is the world's first sausage stuffing machine that has realized production of natural casing sausages with equal weight as well as equal length.Various electric systems availableEasy to operate, non-proprietary electronic components and controls. Omron, Mitsubishi or Allen Bradley, the choice is yours. (Above: Mitsubishi)LINKWEL-X achieved high-speed production of natural casing sausages.It is a machine completed with an idea quite different from the conventional stuffing theory for natural casing sausages. It has realized a production with much higher speed than the conventional natural casing sausages stuffing machine. In addition, since it can be connected including an operation of hanging sausages on rods.LINKWEL-X can minimize breakage of casings during stuffing.As it employs a stuffing method different from the conventional ones, it drastically decreases the frequency of casing breakage due to a success in a sharp decrease of pressure on casings during stuffing.
Machine Size Conveyor Height
1,423 mm
Machine Size Conveyor Height With Wooden Crate
1,550 mm
Machine Size Conveyor Length With Wooden Crate
3,500 mm
Machine Size Conveyor Weight With Wooden Crate
410 kg
Machine Size Conveyor Width With Wooden Crate
750 mm
Machine Size Gross Height With Wooden Crate
1,830 mm
Machine Size Gross Length With Wooden Crate
2,550 mm
Machine Size Gross Weight With Wooden Crate
720 kg
Machine Size Gross Width With Wooden Crate
900 mm

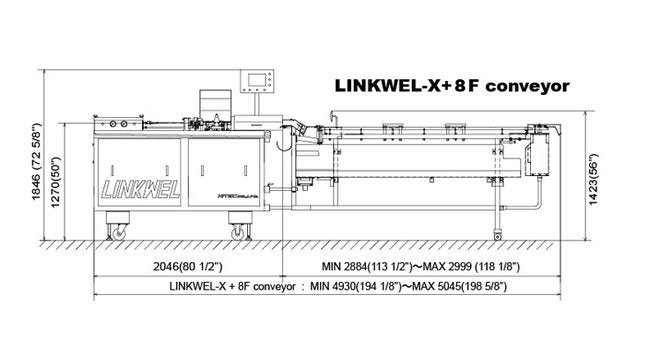

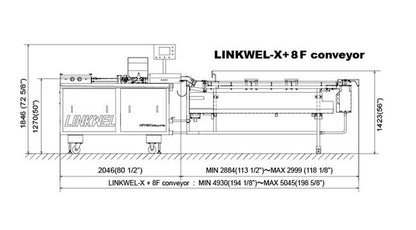

Machine Size Maximum Total Machine Length
5,045 mm
Machine Size Net Height
1,846 mm
Machine Size Net Maximum Length
2,046 mm
Machine Size Net Weight
500 kg
Machine Size Net Width
669 mm
Machine Size Total Machine Height
1,846 mm
Machine Size Total Machine Weight
690 kg
Machine Size Total Machine Width
795 mm
Machine Size Tube Height
1,270 mm
Technical Specs Artificial Casing Production Size
3 pitches (28.6 mm, 1-1/8 in ) through 32 pitches (304.8 mm, 12 in) or more
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Natural Casing Production Size
3 pitches (28.6 mm, 1-1/8 in) through 20 pitches (190.5 mm, 7-1/2 in) or more
Technical Specs Note For Production Size
Longer sizes can be applied with Hitec's optional unit.
