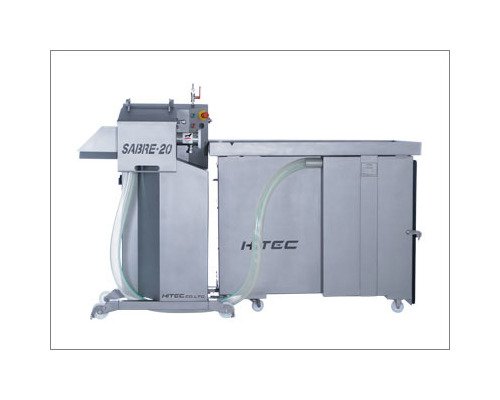

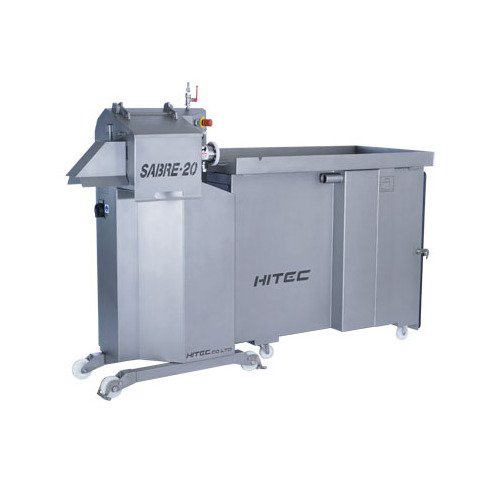

The Hitec 'SABRE-20' High Speed Sausage Peeler revolutionizes peeling processes with a maximum speed of 300m/min, handling sausage products from 13mm to 36mm in diameter. This efficient machine ensures sanitary conditions with angled surfaces, easy maintenance, quick product changeover, and integrated Vacuum Tank unit for peeled casing disposal.
Product Specifications
Features Features

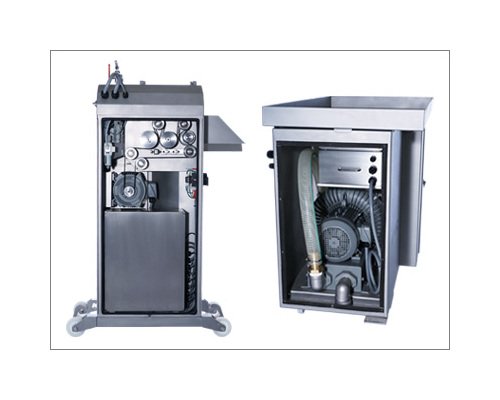

Peeling a wide variety of productsIt is possible to peel sausage products of cellulose casing from 13 mm to 36 mm. The minimum length of product is 20 mm. So it can handle a wide range from cocktail sausages through long jumbo length products.Keep Sanitary ConditionsThe SABRE-20 is designed with angled surfaces to eliminate any standing water. This design helps keep a sanitary environment.Easy & Quick MaintenanceA large opening at the back of the machine, which is about 90% of the backside area, is very helpful for easy access and maintenance. Replacing a blower is also easy.Easy Product ChangeoverIt's very easy to change over to a different size product. The SABRE-20 allows even inexperienced operators to easily change parts and make parts adjustment.High speed peelingThe maximum speed is 300 meters a minute. Operators can adjust the peeling speed depending on the product sizes.Vacuum Tank unitPeeled casings are delivered to the dust box in the vacuum tank. For customers who adopt central vacuuming system at their plants, we provide SABRE-20 without vacuum tank.
Note Note

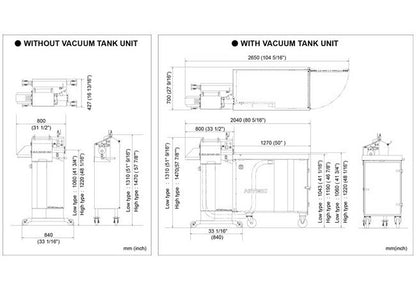

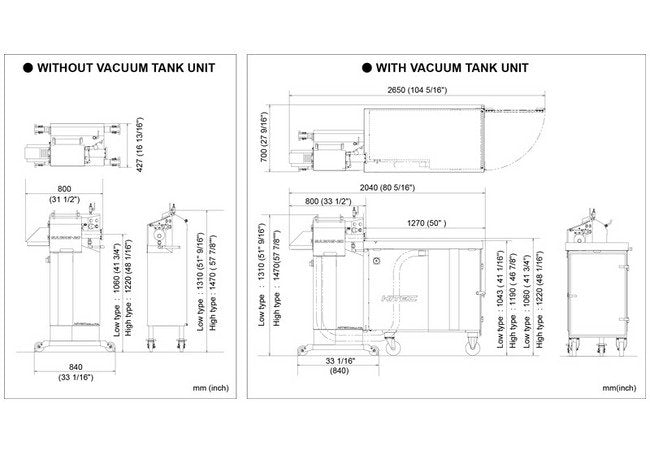

Specifications and equipment are subject change without any obligation on the part of manufacturer.The above production rate is subject to change due to the conditions such as production item, factory and other conditions.Layout dimension includes dimension of optional equipment.
Technical Specs Air Consumption
283 to 425 L/min
Technical Specs Air Pressure
75 to 100 psi | 5.3 to 7.0 kgf/cm²
Technical Specs Approximate Weight Without Vacuum Tank Unit
150 kg | 330 lb
Technical Specs Approximate Weight With Vacuum Tank Unit
420 kg | 945 lb
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Depth Without Vacuum Tank Unit
427 mm | 16-13/16 in
Technical Specs Depth With Vacuum Tank Unit
700 mm | 27-9/16 in
Technical Specs Diameter
13 ~ 36 mm
Technical Specs Height High Type
1,470 mm | 57-7/8 in
Technical Specs Height Low Type
1,310 mm | 51-9/16 in
Technical Specs Length
3 pitches (28.5 mm) more
Technical Specs Maximum Peeling Speed
980 ft/min | 300 m/min
Technical Specs Phase
3
Technical Specs Power Without Vacuum Tank Unit
1.55 kW
Technical Specs Power With Vacuum Tank Unit
3.05 kW
Technical Specs Sausage Loading Height High Type
1,220 mm | 48-1/16 in
Technical Specs Sausage Loading Height Low Type
1,060 mm | 41-3/4 in
Technical Specs Steam Consumption
0 to 50 kg/h
Technical Specs Steam Pressure
30 psi | 2.1 kgf/cm²
Technical Specs Width Without Vacuum Tank Unit
840 mm | 33-1/16 in
Technical Specs Width With Vacuum Tank Unit
2,040 mm | 80-5/16 in
Technical Specs Width With Vacuum Tank Unit When Opened
2,650 mm | 104-5/16 in
