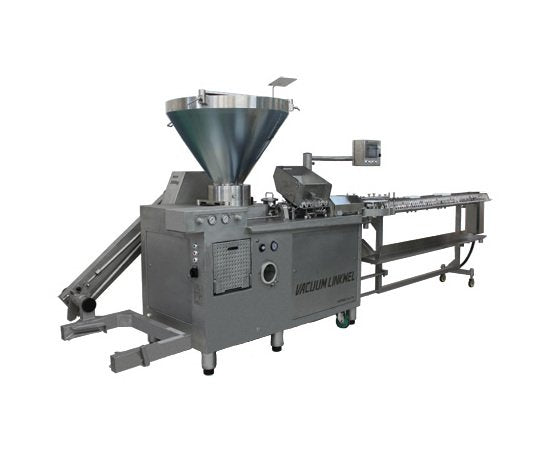

The High Speed Sausage Vacuum Stuffer & Linking System is a versatile solution for both manual and automatic stuffing of equal length and weight sausages to natural and artificial casings. With integrated vacuum technology, it ensures precise and efficient production, allowing for maximum collagen, cellulose, and natural casing production rates. This system offers innovative features like easy product changing, vane pump technology for gentle handling, and the option for large diameter stuffing, making it ideal for commercial and institutional use.
Product Specifications
Electrical Requirements Phase
3
Electrical Requirements Pneumatical Consumption Capacity
1 L | 1,000 cm³/min | 60 in³/min
Electrical Requirements Pneumatic Pressure
520 kPa | 5.2 bar | 75 psi
Electrical Requirements Power
8,500 W
Electrical Requirements Water Consumption Capacity
1 L | 1,000 cm³/min | 60 in³/min
Electrical Requirements Water Pressure
280 to 410 kPa | 2.8 to 4.1 bar | 40 to 60 psi
Electrical Requirements Water Quality
Clean and Drinkable Water
Features Features

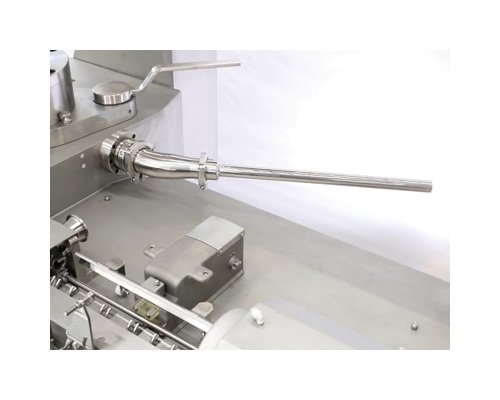

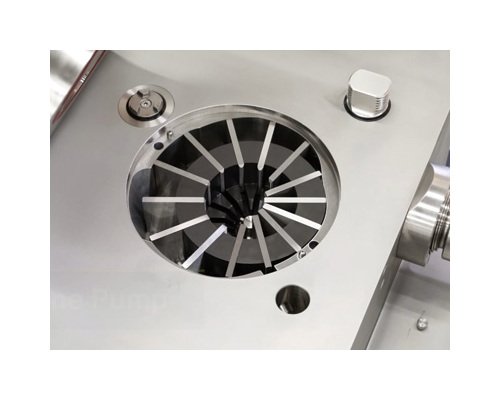

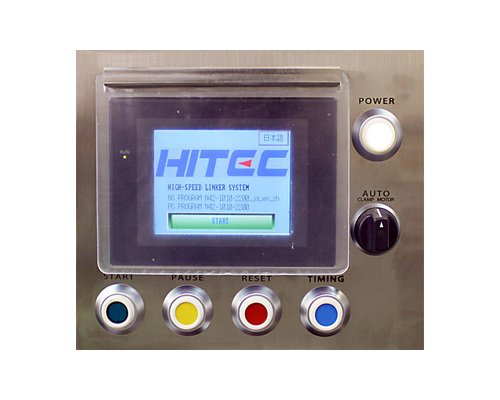

Easy Changing of ProductsOperator friendly monitor. All your necessary information displayed at a moment's notice, quick and easy.Vane PumpDue to the new type vane pump, it is accomplished to convey products without damaging such as crushing and breaking into pieces.Stuffing of Large Diameter ProductBy installing straight stuffing tube, stuffing of large diameter product is possible.Direct Piping (with Magnetic filter)Without damaging meat, it is possible to produce high quality good taste sausage. Magnetic filter is optional device.Stationary ChuteA revolutionary breakthrough over the conventional looping horn which moves to hang product over hooks. Our system allows precise hanging by simply allowing the product to "side" to the conveyor hooks without the need for more wear parts as on a Hanging system.Linking BeltPinchers that are attached on the linking belt fix the product length. Customers can choose the product length from 2 cm and in units of 0.5 cm.

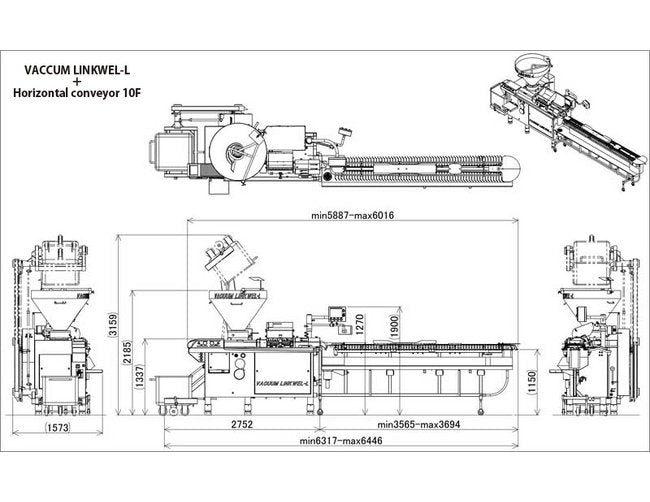

Machine Dimension And Weight Conveyor Height
1,205 to 1,345 mm | 47-7/16 to 52-61/64 in
Machine Dimension And Weight Conveyor Weight
150 kg | 330 lb
Machine Dimension And Weight Conveyor Width
530 mm | 20-55/64 in
Machine Dimension And Weight Net Height
1,999 to 2,133 mm | 78-45/64 to 83-31/32 in
Machine Dimension And Weight Net Maximum Conveyor Length
3,500 mm | 137-51/64 in
Machine Dimension And Weight Net Maximum Length
2,719 mm | 107-3/64 in
Machine Dimension And Weight Net Weight
1,400 kg | 3,086 lb
Machine Dimension And Weight Net Width
1,573 mm | 16-59/64 in
Machine Size Hopper Capacity
300 L
Machine Size Maximum Total Machine Length
5,956 mm | 234-31/64 in
Machine Size Total Machine Height
1,999 to 2,133 mm | 78-45/64 to 83-31/32 in
Machine Size Total Machine Weight
1,550 kg | 3,417 lb
Machine Size Total Machine Width
1,573 mm | 61-59/64 in
Machine Size Tube Height
1,132 to 1,270 mm | 44-9/16 to 50 in
Note Note
Specifications and equipment are subject change without any obligation on the part of manufacturer.The above production rate is subject to change due to the conditions such as production item, factory and other conditions.Layout dimension includes dimension of optional equipment.
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Cellulose Casing Diameter
13 to 40 mm | 33/64 to 1-37/64 in
Technical Specs Cellulose Casing Production Size
2 cm (25/32 in) through 32 cm (12-19/32 in) or more
Technical Specs Cellulose Casing Shirred Length
355 mm | 13-31/32 in
Technical Specs Collagen Casing Diameter
13 to 36 mm | 33/64 to 1-27/64 in
Technical Specs Collagen Casing Production Size
2 cm (25/32 in) through 32 cm (12-19/32 in) or more
Technical Specs Collagen Casing Shirred Length
320 mm | 12-19/32 in
Technical Specs Hog Casing Diameter
26 ~ 36 mm | 1-1/32 to 1-27/64 in
Technical Specs Maximum Cellulose Casing Production Rate
3,000 pcs/min
Technical Specs Maximum Collagen Casing Production Rate
2,000 pcs/min
Technical Specs Maximum Natural Casing Production Rate
1,000 pcs/min
Technical Specs Natural Casing Production Size
3 cm (1-3/16 in) through 22 cm (8-21/32 in) or more
Technical Specs Note For Production Rate
Dependent on casing quality, product size, weight and/or factory conditions.
Technical Specs Note For Production Size
Longer sizes can be applied with Hitec's optional unit.
Technical Specs Sheep Casing Diameter
14 ~ 25 mm | 35/64 to 63/64 in
