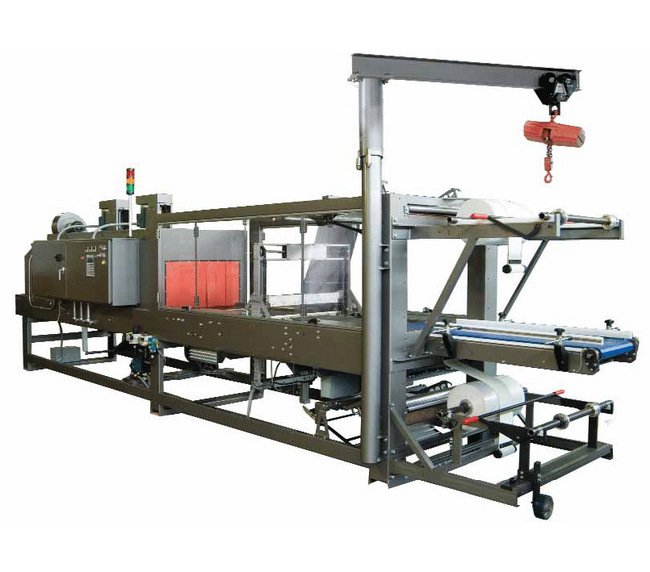

The High-Speed Tray Shrink Wrapping Machine from ARPAC's 65TW-28 series is an efficient solution for high-volume production lines. Capable of wrapping up to 65 trays per minute, this compact machine accommodates various tray-packed products like bottles, cans, and glass jars in single-tier or stacked configurations. Featuring heavy-duty construction, precision components, and digital controls for enhanced setup flexibility, it ensures durability and operational reliability. With a comprehensive set of features including a dual-zone shrink tunnel, film alert system, and NEMA 12 electrical cabinet, this machine offers versatility and efficiency in shrink wrapping applications.
Product Specifications
Electrical Power Requirements Alternating Current Ac Voltage
460 V
Electrical Power Requirements Current
65 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Note
For Electrical Power Requirements - Other voltages available on request.
Electrical Power Requirements Number Of Phase
3
Electrical Power Requirements Power
52 kW
Features Features

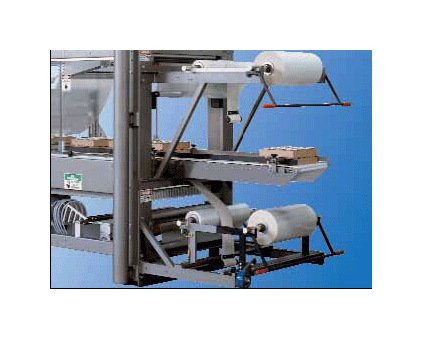

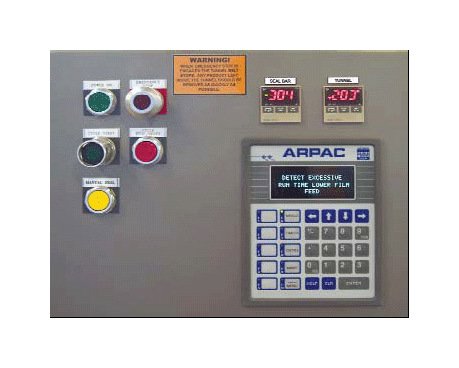

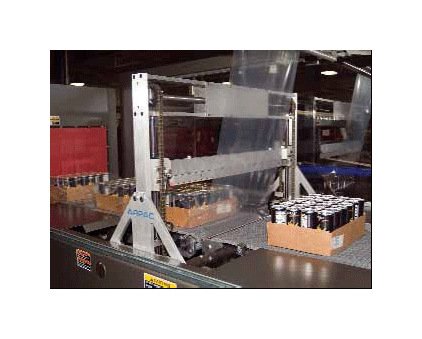

Heavy-duty rugged construction designed for high durability and around-the-clock operationLaser cut and CNC machined components for maximum precisionSteel-It paint provides a scratch resistant surface and prevents corrosionCompact, single frame design (wrapper with integrated tunnel)Allen-Bradley® programmable logic controller with PanelView 600Plus operator interfaceDigital controls ensure fast and accurate setup of conveyor speeds, timing, and temperature settings when changing product size and filmARPAC's operator interface features a color touchscreen with message display and self-diagnosticsBypass mode allows product to pass through the machine without being wrapped and without heating the tunnelLow film alert warns that a film changeover will soon be necessaryDurable Intralox conveyor belts eliminate tracking problemsSeal frame opening for 10" productDual stage belt infeed conveyor20" diameter inline film racks for easy film loadingSimple film threading procedure93" dual zone shrink tunnel3-way cooling feature at the tunnel exit for immediate product handlingNEMA 12 electrical cabinet and controlsCentral point lubrication simplifies preventive maintenance
Options Options
Casters for machine portabilityServo driven seal carriage and seal frameQuick-change seal cylinder kit for higher speedsJib crane to assist with film loadingSide mounted film rack with manual splicing bar for easy film loading at slower speedsSide mounted film rack with manual film splicing bar and continuous film feed for easy film loading at standard operating speeds13 product opening for taller, primarily beverage products (65TW-28B)Print registration - top film only16" high product (max. speed 45 bundles per minute)Wider products and film widths: 65TW-32 with 30" film65TW-36 with 34" filmFilm on film modification
Specifications Applications
Bottles | Cans | Glass Jars | Single-Tier or Stacked Arrangement | Trayed boxes | Unitized Boxes
Specifications Compressed Air Requirements
80 psi | 40 scfm
Specifications Film Gauge
4 mil
Specifications Film Roll Diameter
20 in
Specifications Film Roll Width
27 in
Specifications Film Type
Low Density Polyethylene (L.D.P.E.)
Specifications Height
2 to 10 in
Specifications Length Flow Direction
6 to 18 in
Specifications Other Film Specifications
Clear or Randomly Printed
Specifications Speed
Up to 65 trays per minute
Specifications Width Across Machine
6 to 16 in
