High-Stability OCXO Crystal Oscillator for Frequency Control - 10 to 100 MHz
High-Stability OCXO Crystal Oscillator for Frequency Control - 10 to 100 MHz
SKU:OCX-c7af8c
High-Stability OCXO Crystal Oscillator for precise frequency control in institutional applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High-Stability OCXO Crystal Oscillator for Frequency Control - 10 to 100 MHz
$289.99
Quantity: 1
Claim Your Seller Account
High-Stability OCXO Crystal Oscillator for Frequency Control - 10 to 100 MHz
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

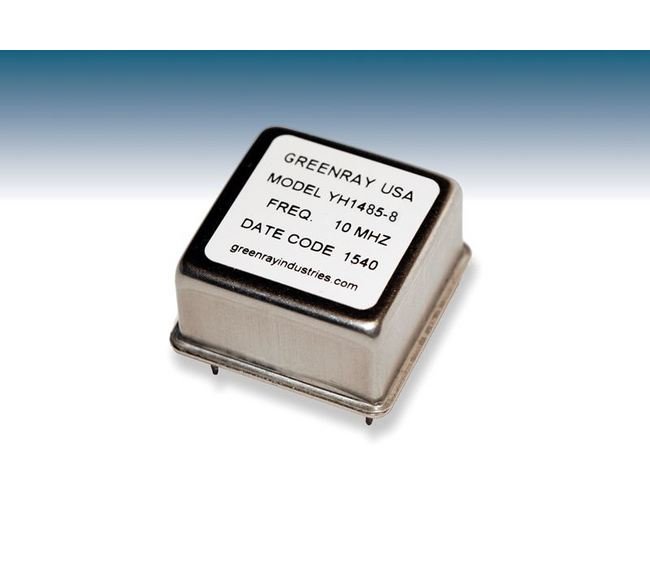

The OCXO 10 to 100 Megahertz Frequency Oven-Controlled Crystal Oscillator is a compact, high-precision device designed for applications requiring tight stability and excellent phase noise performance. With a small 1in. sq. package, this oscillator ensures a sinewave output at +7 dBm ±2 dBm into 50 ohms. Featuring harmonics at -20 dBc, frequency adjustability within ±1.0 ppm to ±2.0 ppm, and remarkable phase noise suppression across different frequency offsets, this OCXO offers reliable frequency control for a wide range of institutional and government applications.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A
Phase Noise Performance 100 Hertz Hz Frequency Offset
-120 dBc/Hz at 100 MHz | -145 dBc/Hz at 10 MHz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-160 dBc/Hz at 10 MHz | -160 dBc/Hz at 100 MHz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-125 dBc/Hz at 10 MHz | -90 dBc/Hz at 100 MHz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 100 MHz | -160 dBc/Hz at 10 MHz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz at 100 MHz | -155 dBc/Hz at 10 MHz
Phase Noise Performance Note For Phase Noise
Typical
Specifications Aging For 1 Year At 100 Mhz
±0.5 ppm
Specifications Aging For 1 Year At 10 Mhz
±0.1 ppm
Specifications Frequency Versus Supply
±1 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V | +15 V | +3.3 V | +5 V
Specifications Input Power
Idle - 1.5 W Typical at +25 ºC | Warmup - <5 W for 5 minutes
Specifications Maximum Frequency
100 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to +3.3 V or +5.0 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Note For Input Voltage
Specs are degraded for the +3.3 V supply. Available temp to -20 to +70 ºC
Specifications Note For Output
+4 dBm for a 3.3 Vsupply
Specifications Ordering Example
YH1460-N18-5-STD-10.0 MHz(Model-Stability-Input V-GSense-Frequency)
Specifications Output
+7 dBm ±2 dBm into 50 ohms | Sinewave

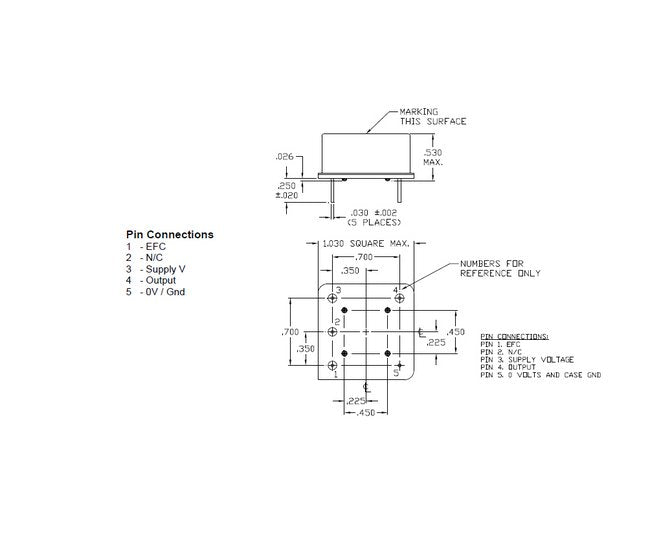

Specifications Pin Configuration
1 - EFC | 2 - N/C | 3 - Supply Voltage | 4 - Output | 5 - 0 V/Gnd
Specifications Positive Slope Frequency Adjust For 100 M
±2.0 ppm
Specifications Positive Slope Frequency Adjust For 10 Mh
±1.0 ppm
Specifications Standard Sd Option Acceleration Sensitivity
â¤2 x 10-9/g in the worst axis (STD) | â¤5 x 10-10/g available with 0.6" high package (HS)
Temperature Stability Model B18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model B58
100 MHz Tolerance: ±5 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model G78
100 MHz Tolerance: ±7 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model N17
100 MHz Tolerance: ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Model T37
100 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
Temperature Stability Option G18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Option N18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: -20 to +70 ºC
Temperature Stability Option T28
10 MHz Tolerance: ±2 x 10-8 | Temperature Range: -40 to +85 ºC
