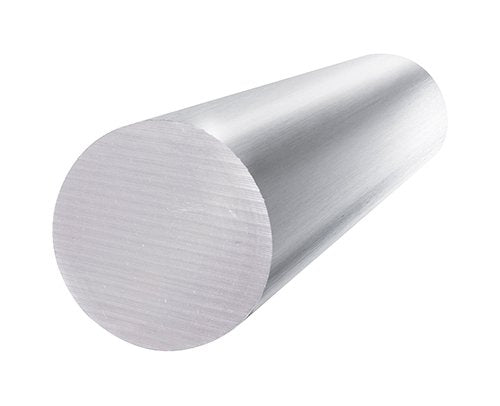

High Strength Aluminum Rounds 2024-T4
High Strength Aluminum Rounds 2024-T4
SKU:ALU-5ba1fc
High strength aluminum rounds ideal for aircraft and industrial applications. Superior strength-to-weight ratio and easy machinability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
High Strength Aluminum Rounds 2024-T4
$25.99
Quantity: 1
Claim Your Seller Account
High Strength Aluminum Rounds 2024-T4
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your projects with our high strength Aluminum Rounds Series 2024-T4. Ideal for applications requiring superior strength-to-weight ratio, fatigue resistance, and easy machinability. This alloy is suitable for aircraft components, fittings, truck wheels, and more. With ultimate strength of 68 ksi and yield strength of 47 ksi, it meets stringent industry standards (AMS 4120, AMS-QQ-A-225/6, ASTM B211, UNS A92024). Elevate your structural designs with our reliable aluminum rounds.
Product Specifications
Aluminum Alloy Designations 0
The aluminum industry uses a four-digit index system for the designation of its wrought aluminum alloys.As outlined below, the first digit indicates the alloy group according to the major alloying elements.1xxx SeriesIn this group minimum aluminum content is 99% and there is no major alloying element. The second digit indicates modifications in impurity limits. If the second digit is zero, there is no special control on individual impurities. Digits 1 through 9, which are assigned consecutively as needed, indicate special control of one or more individual impurities. The last two digits indicate specific minimum aluminum content. Although the absolute minimum aluminum content in this group is 99%, the minimum for certain grades is higher than 99%, and the last two digits represent the hundredths of a per cent over 99. Thus, 1030 would indicate 99.30% minimum aluminum. without special control on individual impurities. The designations 1130, 1230, 1330, etc.. indicate the same purity with special control on one or more impurities. Likewise 1100 indicates minimum aluminum content of 99.00% with individual impurity control.2xxx through 9xxx SeriesThe major alloying elements are indicated by the first digit, as follows: 2xxx Copper3xxx Manganese4xxx Silicon5xxx Magnesium6xxx Magnesium and silicon7xxx Zinc8xxx Other element9xxx Unused seriesThe second digit indicates alloy modification. If the second digit is zero. it indicates the original alloy: digits 1 through 9, which are assigned consecutively, indicate alloy modifications. The last two digits have no special significance, serving only to identify the different alloys in the group.Experimental AlloysExperimental alloys are designated according to the four digit system, but they are prefixed by the letter X. The prefix is dropped when the alloy becomes standard. During development, and before they are designated as experimental, new alloys are identified by serial numbers assigned by their originators. Use of the serial number is discontinued when the X number is assigned.
Comparative Characteristics And Applications Applications
Truck wheels, screw machine products, aircraft structures
Comparative Characteristics And Applications Arc Weldability
B
Comparative Characteristics And Applications Brazeability
D
Comparative Characteristics And Applications Gas Weldability
C
Comparative Characteristics And Applications Mechinability
B
Comparative Characteristics And Applications Resistance Spot And
B
Comparative Characteristics And Applications Resistance To Corro
D
Comparative Characteristics And Applications Stress Corrosion Cr
C
Comparative Characteristics And Applications Workability Cold
C
Specifications Astm Specification
AMS 4120 | AMS-QQ-A-225/6 | ASTM B211 | UNS A92024
Specifications Density
0.100 lbs/in³
Specifications Diameter
0.25 inches | 6.35 mm
Specifications Estimated Weight
0.0590 lbs/ft | 0.0878038 kg/m
Specifications Estimated Weight Per 12 Bar
0.707 lbs | 0.3206898268 kg
Specifications Grade
2024
Specifications Material
Aluminum
Specifications Series
2024-T4
Specifications Shapeform
Round
Specifications Specific Gravity
2.78
Specifications Temper
T4
Specifications Ultimate Strength
68 ksi
Specifications Yield Strength
47 ksi
Mechanical Properties Elongation Percent In 2 Inches
19
Mechanical Properties Fatigue Endurance Limit
20 ksi
Mechanical Properties Hardness Brinnel Number
120
Mechanical Properties Modulus Of Elasticity
10.6 x 104 ksi
Mechanical Properties Ultimate Shearing Strength
41 ksi
