High Strength Split Clamp Shaft Collar, Steel, 3-15/16 in Bore
High Strength Split Clamp Shaft Collar, Steel, 3-15/16 in Bore
SKU:ROU-30e207
Superior shaft protection with high clamping power and durable steel construction. RoHS2 and REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Strength Split Clamp Shaft Collar, Steel, 3-15/16 in Bore
$24.99
Quantity: 1
Claim Your Seller Account
High Strength Split Clamp Shaft Collar, Steel, 3-15/16 in Bore
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

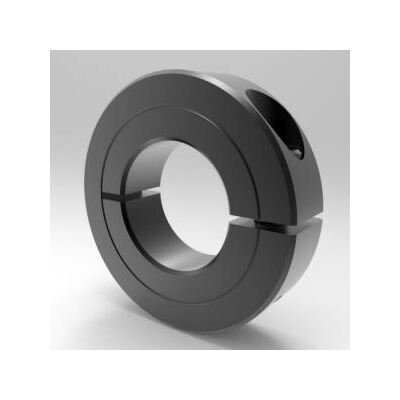

The High Strength Split Clamp-Type Shaft Collar offers superior shaft protection with its smooth bore design. Featuring a black oxide finish, this collar provides exceptional holding power compared to set-screw collars. Precision machined from C1026 alloy steel, it is durable and non-marring, suitable for standard round shafts or split hubs. The clamp screw, recessed for safety, is 1/2-20 x 1-1/4 inches. This collar complies with RoHS2 and REACH standards and is made in the USA.
Product Specifications
Dimensional Attributes Bore Size
3-15/16 in
Dimensional Attributes Outside Diameter
5.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/2-20 x 1-1/4
Dimensional Attributes Width
1.000 in
Specifications Alloy
C1026
Specifications Approximate Weight
3.67 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
1L315
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786000706
