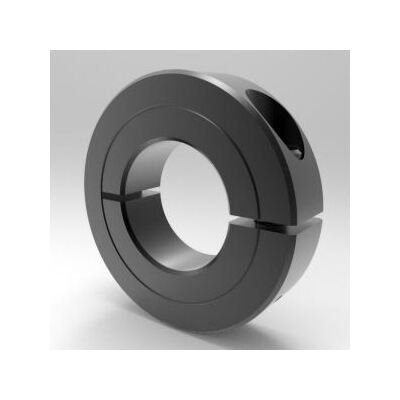

High Strength Steel Split Clamp Shaft Collar
High Strength Steel Split Clamp Shaft Collar
SKU:ROU-9bd982
High Strength Steel Split Clamp Shaft Collar for superior shaft protection and high clamping power. Precision machined and adjustable.
Regular price
$22.33
Regular price
Sale price
$22.33
Unit price
per
Initiate Order
High Strength Steel Split Clamp Shaft Collar
$22.33
Quantity: 1
Claim Your Seller Account
High Strength Steel Split Clamp Shaft Collar
$22.33
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Strength Steel Split Clamp Shaft Collar offers superior shaft protection with its smooth bore design. Providing exceptional holding power compared to set-screw collars, this collar is precision machined and non-marring. Its adjustable clamp screw, available in alloy steel, ensures a secure fit for standard round shafts or thin wall tubes. Stocked in various materials including Steel, Stainless Steel, Aluminum, Nylon, and Delrin. Choose this High Strength model for a clamp screw that does not protrude beyond the outside diameter (OD).
Product Specifications
Dimensional Attributes Bore Size
1-15/16 in
Dimensional Attributes Outside Diameter
3.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
0.88 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
22.33 USD
Specifications Material
Steel
Specifications Part Number
1L115
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786000492
