High Strength UNF/UNC Threaded Shaft Collar
High Strength UNF/UNC Threaded Shaft Collar
SKU:THR-cdf076

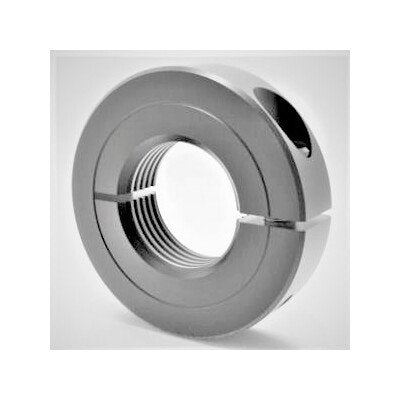

Precision-machined stainless steel split clamp-type collar with high clamping power for UNF/UNC threaded shafts.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
High Strength UNF/UNC Threaded Shaft Collar
$14.99
Quantity: 1
Claim Your Seller Account
High Strength UNF/UNC Threaded Shaft Collar
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Strength UNF/UNC Threaded Shaft Collar is designed to fit standard UNF/UNC threaded shafts, offering superior holding power over set-screw type collars. Precision machined from stainless steel alloy 303, this one-piece split clamp-type collar is non-marring, easy to adjust, and provides high clamping power. With a threaded bore size of 1/4-20, outside diameter of 0.813 inches, and screw size of 4-40, it ensures a secure and precise fit. Suitable for various applications, this shaft collar is RoHS2 and REACH compliant, meeting high industry standards.
Product Specifications
Dimensional Attributes Outside Diameter
0.813 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
4-40
Dimensional Attributes Threaded Bore Size
1/4-20
Dimensional Attributes Width
0.250 in
Specifications Alloy
303
Specifications Approximate Weight
0.03 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
4S004
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786011559
