High Strength UNF/UNC Threaded Shaft Collar
High Strength UNF/UNC Threaded Shaft Collar
SKU:THR-acd3fa
Precision machined High Strength UNF/UNC Shaft Collar for secure clamping on threaded shafts. RoHS2 and REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Strength UNF/UNC Threaded Shaft Collar
$24.99
Quantity: 1
Claim Your Seller Account
High Strength UNF/UNC Threaded Shaft Collar
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

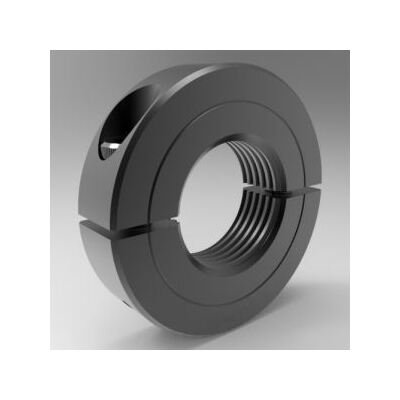

The High Strength UNF/UNC Threaded Shaft Collar offers superior holding power over traditional set-screw collars. Precision machined from durable steel with a black oxide finish, this two-piece split clamp-type collar is designed for easy adjustment and can be placed anywhere on a threaded shaft. With a recessed screw feature and a non-marring design, it provides secure clamping with a sleek low-profile look. Available in 1 3/8-12 threaded bore size, this collar is RoHS2 and REACH compliant, making it ideal for industrial applications.
Product Specifications
Dimensional Attributes Outside Diameter
2.375 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Threaded Bore Size
1 3/8-12
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.37 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
3L106F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012228
