High-Tech UT/ET Common Mode Inductors

Name: High-Tech UT/ET Common Mode Inductors
Brand: Triad Magnetics
SKU: IND-ee6a07
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-ee6a07

Combat EMI/RFI effectively with UT/ET Common Mode Inductors. High performance, low stray capacitance, and industry-compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UT/ET Series Common Mode Inductors are essential components for combating electromagnetic and radio frequency interference in power supply lines and electronic devices. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors ensure optimal performance and reliability. Designed with precision to meet industry standards such as CSA, IEC, and UL, these inductors offer high impedance at applicable frequencies, making them ideal for a wide array of applications.

Product Specifications

Specifications Configuration Type

Horizontal

Specifications Current Rating

0.7 A

Specifications Dielectric Withstanding Voltage Ac

2,000 V

Specifications Features

High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

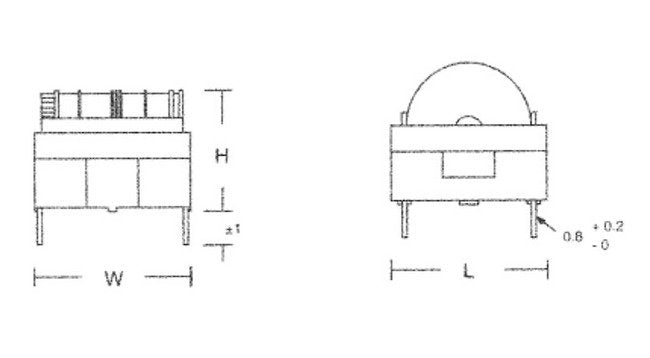

Specifications Height H

25 mm

Specifications Industry Standards

CSA | IEC | UL

Specifications Length L

30 mm

Specifications Max Dcr

1.5 Ohm

Specifications Max Inductance Difference

1,500 ÂµH

Specifications Max Temperature Rise

45 ÂºC

Specifications Min Inductance

66.00 mH

Specifications Min Insulation Resistance

100 mOhm

Specifications Operating Temperature Range

-20 to 105 ÂºC

Specifications Pin Mounting A

24.0 mm

Specifications Pin Mounting B

20.0 mm

Specifications Rated Voltage Ac

250 V

Specifications Weight

1.40 oz

Specifications Width W

30 mm

Technical Notes 0

The inductance difference measures between the coil L1 and L2.
