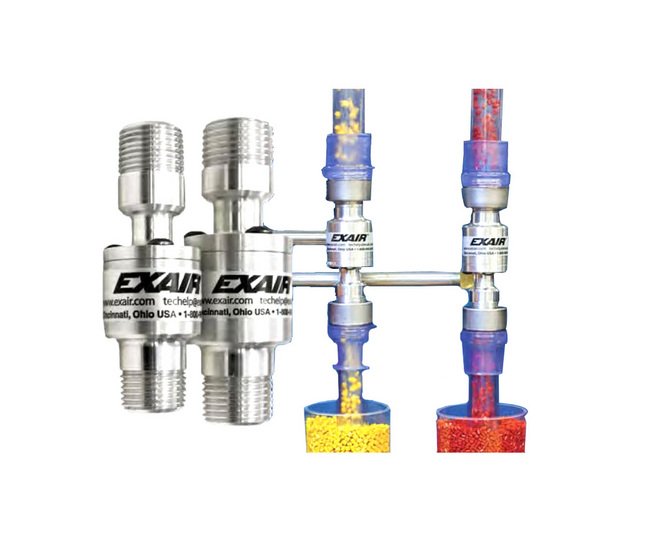

High Temp 303 Stainless Steel Threaded Line Vac Conveyor - 2 NPT Inlet
High Temp 303 Stainless Steel Threaded Line Vac Conveyor - 2 NPT Inlet
SKU:THR-4e7dff
Efficient high temp stainless steel conveyor for various materials. Easy plumbing attachment for minimal maintenance.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
High Temp 303 Stainless Steel Threaded Line Vac Conveyor - 2 NPT Inlet
$449.99
Quantity: 1
Claim Your Seller Account
High Temp 303 Stainless Steel Threaded Line Vac Conveyor - 2 NPT Inlet
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Temperature 303 Stainless Steel Threaded Line Vac Conveyor with a 2 NPT inlet offers a fast, cost-effective solution for conveying plastic pellets, scrap trim, textiles, bulk solids, and more. Designed for long-distance material conveyance, this conveyor attaches easily to plumbing pipes, providing instant response and infinite control of the conveying rate. With materials available in aluminum or stainless steel, this conveyor is maintenance-free, compact, and operates quietly, making it ideal for a wide range of institutional applications.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
45 SCFM | 1274 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
2 NPT
Specifications Inside Diameter
1.75 in | 44 mm
Specifications Material
High Temperature Type 303 Stainless Steel
Specifications Outlet Thread Size
2 NPT
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pipe Size
2 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-28.5 inWc | -7 kPa
