High Temp 316 Stainless Steel Threaded Line Vac Conveyor - 3/4 NPT Inlet
High Temp 316 Stainless Steel Threaded Line Vac Conveyor - 3/4 NPT Inlet
SKU:THR-0747ff
Powerful High Temp Stainless Steel Line Vac Conveyor for efficient material conveyance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High Temp 316 Stainless Steel Threaded Line Vac Conveyor - 3/4 NPT Inlet
$399.99
Quantity: 1
Claim Your Seller Account
High Temp 316 Stainless Steel Threaded Line Vac Conveyor - 3/4 NPT Inlet
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

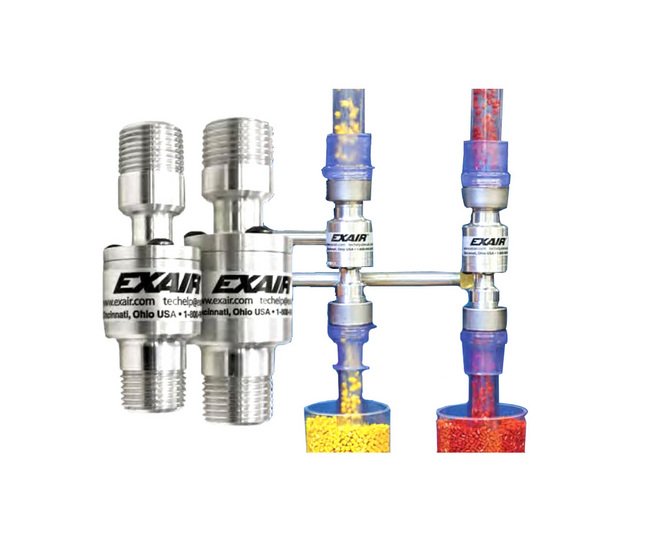

The High Temperature 316 Stainless Steel Threaded Line Vac Conveyor with a 3/4 NPT Inlet delivers exceptional conveying power for plastic pellets, textiles, bulk solids, and more. Ideal for large volume material conveyance over long distances, this conveyor offers instant response and infinite conveying rate control. With no moving parts and maintenance-free operation, it's a cost-effective solution for industrial applications.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
10.70 SCFM | 303 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F1
1 in | 25 mm
Specifications Dimension F2
1 in | 25 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.76 in | 19 mm
Specifications Dimension J
1.52 in | 39 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.38 in | 35 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.44 in | 37 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Inlet Thread Size
3/4 NPT
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Material
High Temperature Type 316 Stainless Steel
Specifications Outlet Thread Size
3/4 NPT
Specifications Outside Diameter
1.88 in | 48 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pipe Size
3/4 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-72 inWc | -18 kPa
