High Temp Nylon Cap Plug FGCP-15X

Name: High Temp Nylon Cap Plug FGCP-15X
Brand: Custom Fabricating & Supplies
SKU: CAP-908b5b
Price: 99.99 USD
Availability: OutOfStock

SKU:CAP-908b5b

Versatile High Temp Nylon Cap Plug for precise thread and tube end protection in coating processes, up to 400°F/204°C.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Temp Nylon Cap Plug FGCP-15X serves as both a cap and plug, crafted from durable nylon suitable for high-temperature applications up to 400°F/204°C. With precise dimensions to fit tube ends and threads securely, it safeguards against contamination, making it ideal for coating processes, ensuring efficiency and protection during shipment.

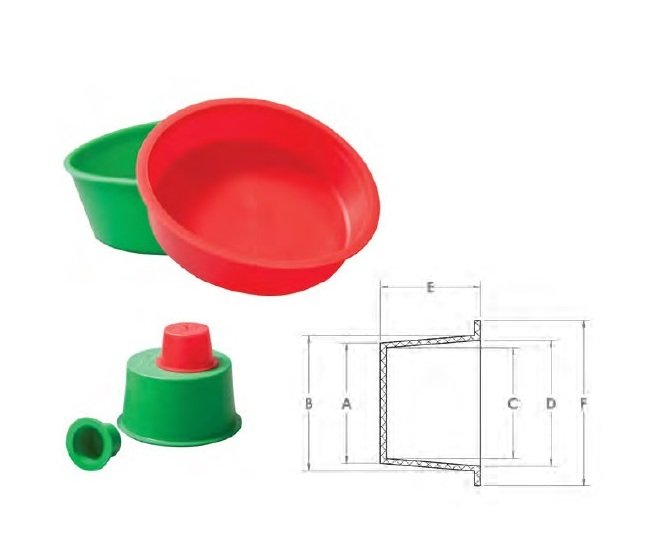

Product Specifications

Specifications Dimension A

1.235 Inch | 31.37 mm

Specifications Dimension B

1.360 Inch | 34.54 mm

Specifications Dimension C

1.173 Inch | 29.79 mm

Specifications Dimension D

1.298 Inch | 32.97 mm

Specifications Dimension E

0.810 Inch | 20.57 mm

Specifications Dimension F

1.500 Inch | 38.1 mm

Specifications Features

Temperature Rating (Low Temperature) 200 Â°F/93 Â°C Temperature Rating (High Temperature) 400 Â°F/204 Â°C Protect Threads and Tube Ends During Shipment High Temperature Version can be used in Powder Coating Applications

Specifications Quantitybox

2,500

High Temp Nylon Cap Plug FGCP-15X
