High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

SKU:PUS-4fa2ad

Find precision control with the High Temp Push-Pull Cable - resistant up to 310°F with stainless steel components.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

$39.99

Quantity: 1

Claim Your Seller Account

High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

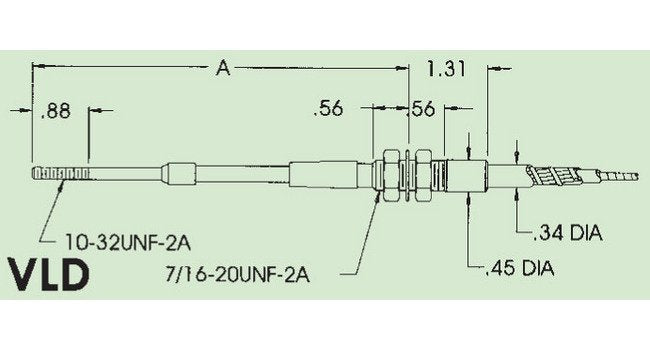

The High Temp Push-Pull Standard Cable is meticulously constructed with stainless steel support tubes, end rods, and conduit caps. This cable features a High Temp conduit with binder wire, TFE liner, and Santoprene cover, ensuring superior heat resistance up to 310°F. Offering various seal options, end rod thread size of M5 x 0.8, and multiple cable travel lengths, this cable is designed for precision control and durability. Additionally, it includes suffix letters for customization options such as metric end rods, stamping with part numbers, and extra shakeproof washers.

Product Specifications

Specifications Cable Travel
1 " | 2 " | 3 " | 4 " | 5 " | 6 "
Specifications Conduit Cap Types Options Gg Tg Tt Cc
T - Threaded Swivel/T - Threaded Swivel
Specifications Conduit Description
High Temp: Includes binder wire, TFE liner, Santoprene cover, rated to 310 deg. F. (the other conduits max out as 230 deg. F).
Specifications End Rod Thread Size M
M5 x 0.8
Specifications Seal Options
6
Specifications Suffix Letters For Additional Features
A - Combination of N and W | M - Metric End Rods (optional) | N - End Rod Jam Nuts (2 each) | P - Stamp with Customer Part Number | S - Stamp with Cablecraft and Customer Part Number | W - Extra Shakeproof Washers on Conduit Ends
CAGE
0T9L4
NAICS
332510
PSC
4030
