High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

SKU:PUS-12db57

High Temp Push-Pull Cable with stainless steel construction, TFE liner, and Santoprene cover for up to 310°F, customizable features available.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

$49.99

Quantity: 1

Claim Your Seller Account

High Temp Push-Pull Standard Cable

High Temp Push-Pull Standard Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

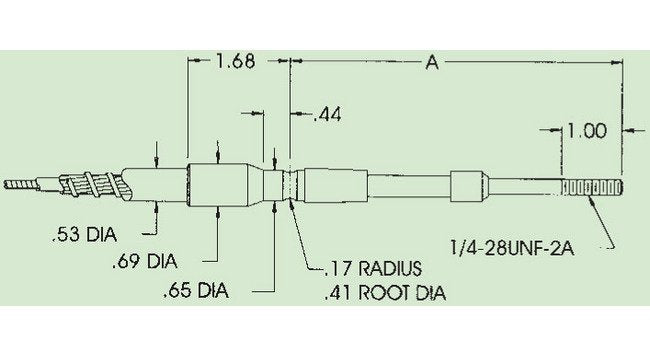

The High Temp Push-Pull Standard Cable is designed for robust performance in high-temperature environments, featuring stainless steel support tubes, end rods, conduit caps, and innermember armor. With a TFE liner and Santoprene cover, this cable can withstand temperatures up to 310°F, surpassing standard cables rated at 230°F. The grooved swivel conduit cap types offer flexibility in cable travel lengths from 1" to 6". Additional suffix options provide customizable features such as metric end rods, end rod jam nuts, and customer part number stamping.

Product Specifications

Specifications Cable Travel
1 " | 2 " | 3 " | 4 " | 5 " | 6 "
Specifications Conduit Cap Types Options Gg Tg Tt Cc
G - Grooved Swivel/G - Grooved Swivel
Specifications Conduit Description
High Temp: Includes binder wire, TFE liner, Santoprene cover, rated to 310 deg. F. (the other conduits max out as 230 deg. F).
Specifications End Rod Thread Size M
M6 x 1.0
Specifications Seal Options
6
Specifications Suffix Letters For Additional Features
A - Combination of N and W | M - Metric End Rods (optional) | N - End Rod Jam Nuts (2 each) | P - Stamp with Customer Part Number | S - Stamp with Cablecraft and Customer Part Number | W - Extra Shakeproof Washers on Conduit Ends
CAGE
0T9L4
NAICS
332510
PSC
4030
