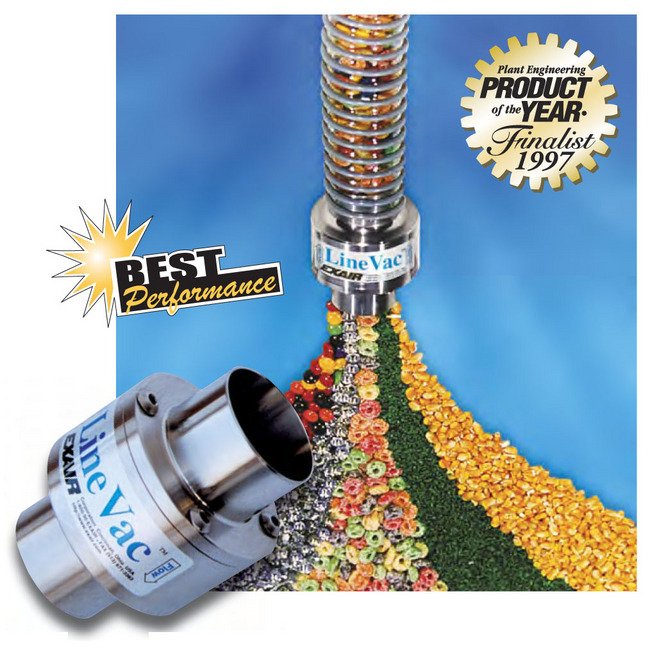

The High Temperature 316 Stainless Steel Line Vac Conveyor offers a fast, low-cost solution for conveying various materials such as plastic pellets, textiles, food products, and more. Constructed from durable Type 316 stainless steel with a temperature rating of 900°F, it ensures excellent corrosion resistance and reliability. This conveyor features an inlet/outlet diameter of 1-1/4", compact design, and no moving parts, providing high throughput capability and quiet operation. With applications ranging from chip removal to material conveying, this conveyor is available in multiple sizes and is compatible with standard hoses or tubes.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
25.90 SCFM | 733 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Excellent
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
1.25 in | 32 mm
Specifications Inlet Size
1-1/4 in | 32 mm
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
High Temperature Type 316 Stainless Steel
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2.38 in | 61 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
900 ºF | 482 ºC
Specifications Vacuum Pressure
-42 inWc | -11 kPa
