High-Temperature Beaded Pipe Connector
High-Temperature Beaded Pipe Connector
SKU:BEA-25bef4
Discover durability and precision with our High-Temperature Beaded Pipe Connector. Suitable for high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Temperature Beaded Pipe Connector
$129.99
Quantity: 1
Claim Your Seller Account
High-Temperature Beaded Pipe Connector
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional durability and performance with our High-Temperature Beaded Pipe Connector. This DN 4 in pipe boasts a length of 108 in, suitable for applications requiring a Maximum Working Pressure of 50 psig and Maximum Sudden Differential Temperature of 140 °F. With reliable Physical Properties like a Coefficient of Mean Linear Expansion and Mean Thermal Conductivity, this product ensures efficient heat transfer. Designed for precision, the beaded pressure system's length is measured to the center of the beaded coupling, meeting stringent industry standards for lasting quality and performance excellence.
Product Specifications
Equivalent Lengths Feet By Pipe Size 45 Ell Miter
4
Equivalent Lengths Feet By Pipe Size 90 Ell Miter
20
Equivalent Lengths Feet By Pipe Size 90 Sweep
11
Equivalent Lengths Feet By Pipe Size Tee Run
6.7
Equivalent Lengths Feet By Pipe Size Tee Si
23
Equivalent Lengths Feet By Pipe Size Tee So
20
Note 0

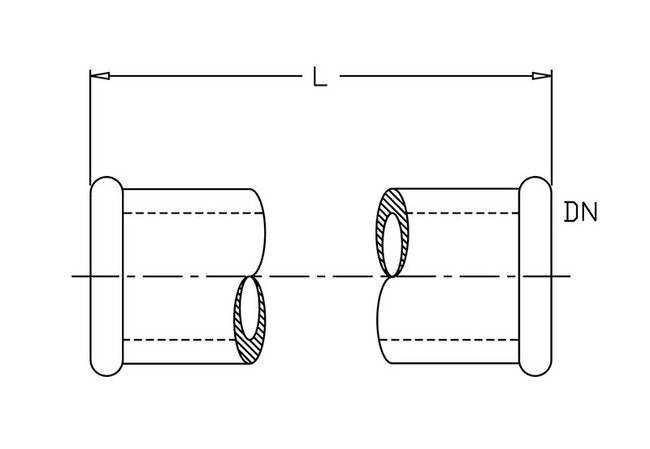

The length (L) of the beaded pressure systems is measured to the center of the beaded coupling.
Physical Properties Coefficient Of Mean Linear Expansion Between
(3.3 ± 0.1) x 10-6 K-1
Physical Properties Density At 20 C
2.23 g/cm³
Physical Properties Mean Specific Heat Capacity Between 20 And 2
0.98 kJ/kgK
Physical Properties Mean Thermal Conductivity Between 20 And 200
1.3 W/mK
Specifications Dn
4 in
Specifications Length
108 in
Specifications Maximum Sudden Differential Temperature
140 ºF
Specifications Maximum Working Pressure
50 psig
