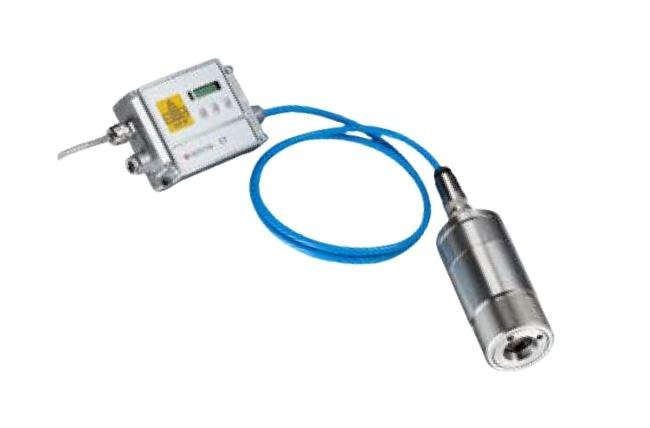

Experience unparalleled accuracy and target visualization with the Optris Infrared Sensing High-Temperature Infrared Video Thermometer. This cutting-edge device features a video camera and cross hair laser for precise target location, with a temperature range of 800 to 2200 degrees Celsius. With a spectral range of 1.0 µm and a temperature resolution of 0.1 K, this thermometer ensures reliable high-temperature measurements for industrial applications. The exchangeable sensing head, rapid 1ms response time, and scalable temperature ranges via software make this thermometer a versatile and essential tool for accurate temperature monitoring.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
800 to 2200 ºC | 1472 to 3992 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
