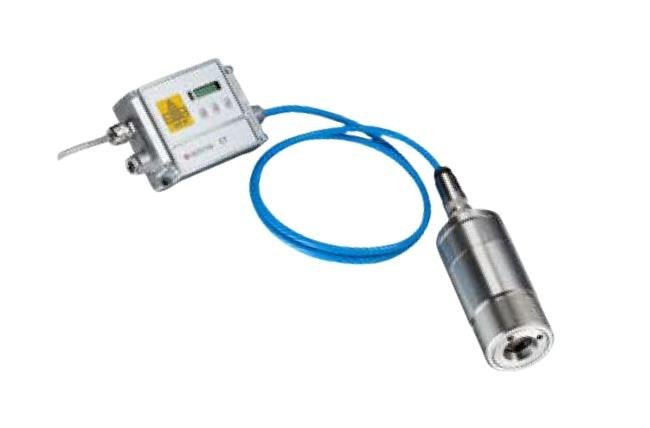

Experience precise high-temperature measurements with the Optris Infrared Sensing Two-Piece Sensor featuring a video camera, cross hair laser, and a temperature range of 485 to 1050 degrees Celsius. This thermometer offers exceptional accuracy, quick response time, and a scalable spectral range, making it ideal for industrial applications requiring reliable temperature monitoring at extreme heat levels.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.02 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.6 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
1.3 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.05 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
485 to 1050 ºC | 905 to 1922 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
