High-Temperature Infrared Video Thermometer
High-Temperature Infrared Video Thermometer
SKU:INF-7f683a
High-Temp Infrared Video Thermometer with patented laser for precise metal measurement. Reliable, scalable, and accurate.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
High-Temperature Infrared Video Thermometer
$5,999.99
Quantity: 1
Claim Your Seller Account
High-Temperature Infrared Video Thermometer
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

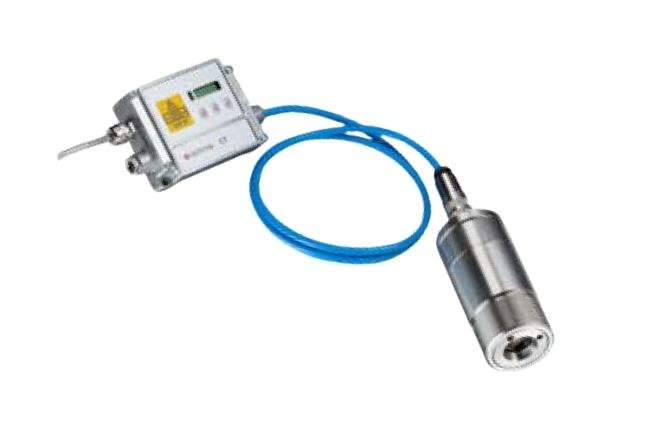

Experience precision with the Optris Infrared Sensing High-Temperature Infrared Video Thermometer featuring a patented cross hair laser and video channel. This two-piece sensor with an electronic box is designed for accurate high-temperature measurement of metals, offering temperature ranges from 385 to 1600 ºC. With a spectral range of 1.6 µm, optical resolution of 300:1, and response time of 1 ms, this thermometer provides reliable readings for industrial applications. Scalable via software and meeting stringent standards, this thermometer ensures precise target visualization and location.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
385 to 1600 ºC | 725 to 2912 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
