High-Temperature Infrared Video Thermometer 650-1800°C
High-Temperature Infrared Video Thermometer 650-1800°C
SKU:INF-aef929
High-Temp Infrared Video Thermometer for precise metal temperature readings. Video camera & cross hair laser for accuracy. Ideal for industrial use.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
High-Temperature Infrared Video Thermometer 650-1800°C
$2,499.99
Quantity: 1
Claim Your Seller Account
High-Temperature Infrared Video Thermometer 650-1800°C
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

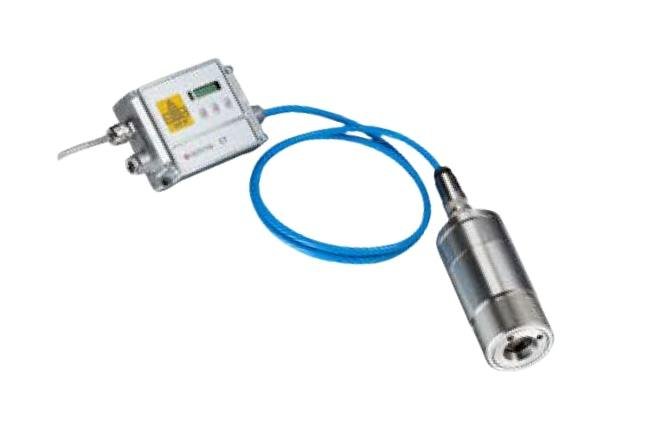

The Optris Infrared Sensing High-Temperature Infrared Video Thermometer offers a cutting-edge solution for precise temperature measurement in metals. With a temperature range of 650 to 1800°C, this thermometer features a two-piece sensor design with a video camera and cross hair laser for accurate target visualization and location. The scalability via software allows customizable temperature ranges, while the 300:1 optical resolution ensures detailed measurements. Ideal for industrial applications requiring high-temperature monitoring with top-notch accuracy.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
300:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.01 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.3 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
0.7 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.03 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
650 to 1800 ºC | 1202 to 3272 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
