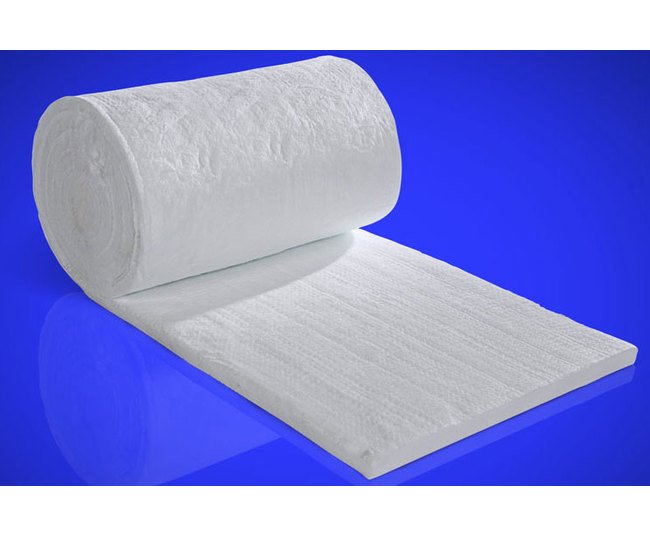

Fiber blankets for high temperature applicationsThermal Ceramics offers high temperature fiber blankets for applications in thermal management and passive fire protection.Refractory Ceramic Fibers (RCF), or Alumino Silicate Wool (ASW) blankets made from Kaowool®, Cerablanket®, Cerachem® and Cerachrome® with temperature capabilities up to 1425 ºC (2600 ºF)Low biopersistent fibers, are provided as Superwool® blankets with classification temperatures of 1300 ºC (2372 ºF) and 1450 ºC (2600 ºF) on selected grades and applicationsPolycrystalline fibers (PCW) blankets, Denka Alcen with a temperature rating up to 1600 ºC (2912 ºF)Our high temperature insulating blankets are used in markets like Petrochemical, Power Generation, Consumer Goods and Automotive.
Product Specifications
Polycrystalline Wool Pcw
Our PCW fibers are ideal for high temperature and chemically aggressive applications. These fibers are manufactured by sol-gel technology using processes specifically designed to produce fibers of defined dimensions.Denka blankets are more resistant to acid and alkaline solutions than conventional alumino-silicate fiber blankets and have exceptionally good thermal insulation characteristics. They are classified to 1600 ºC (2912 ºF).Our high temperature insulating fiber blankets provide thermal insulation in processing of metals, petrochemicals, cement, ceramics and glass, and are used by manufacturers of equipment for aerospace, automotive, marine and domestic applications. Typical applications include:Chimney and duct insulation in power generation plantsPipe insulation in high temperature processing plantsLinings and back-up insulation for all types of furnaces, heaters and kilnsInsulation of steam turbines and hot boxesExhaust and heat shield claddingVehicles and domestic appliance insulationSee our product datasheets for more information or contact us to discuss the requirements for your application.
Refractory Ceramic Fiber Rcf
All our RCF blankets are air laid into a continuous mat and mechanically needled for added strength and surface integrity. They are lightweight and strong for easier installation, have low thermal conductivity and heat storage capacity for effective energy savings, and good thermal shock resistance for use in difficult environments.Kaowool® blankets feature controlled density, high tensile strength, and resiliency and are classified to 1260 ºC (2300 ºF). Cerablanket® is classified up to 1315 ºC (2400 ºF) and is a spun blanket manufactured from a high purity blend of alumina silica. Cerachem® and Cerachrome® offer excellent chemical stability and strength and have superior acoustic as well as thermal insulation characteristics. They are classified to 1426 ºC (2600 ºF).
Specifications Low Biopersistent Fibers
Superwool®
Specifications Low Biopersistent Fibers Temperature
1300 ºC | 1450 ºC | 2372 ºF | 2600 ºF
Specifications Polycrystalline Wool Pcw Fibers
Denka Alcen
Specifications Polycrystalline Wool Pcw Fibers Temperature
1600 ºC | 2912 ºF
Specifications Refractory Ceramic Fibers Rcf
Cerablanket® | Cerachem® | Cerachrome® | Kaowool®
Specifications Refractory Ceramic Fibers Rcf Temperature
1425 ºC | 2600 ºF
Superwool Low Biopersistent Fibers
Our Superwool® blanket products offer exceptional performance-to-weight ratio and are resistant to chemical attack. Superwool® is the only low bio persistence fiber available in the market with a classification temperature of 1300 ºC (2372 ºF) and 1450 ºC (2600 ºF) on selected grades and applications.Superwool® is an engineered solution that is ideally suited as an alternative solution to RCF based fibers in some applications. Benefits of Superwool® fibers include:Lower thermal conductivity over some RCF fiber materials resulting in an improved insulation performance by up to 20%Our Superwool® Plus™ fibers feature less shot resulting in a tighter fiber matrixLower density grade of Superwool® in place of an RCF material features a material weight savings up to 25%Superwool® XTRA™ does not form crystalline silica when exposed to high temperaturesSuperwool® fibers are exonerated from carcinogen classification within Europe and not classified as hazardous by IARC or under any national regulations on a global basis. They have no requirements for warning labels under GHS (Globally Harmonized System for the classification and labeling of chemicals). In Europe, Superwool® fibers meet the requirements specified under NOTA Q of European Directive 67/548. All Superwool® fiber products are therefore exempt from the classification and labeling regulation in Europe.
