High Temperature Stainless Steel Line Vac Conveyor - 1-1/4" Inlet/Outlet Diameter
High Temperature Stainless Steel Line Vac Conveyor - 1-1/4" Inlet/Outlet Diameter
SKU:LIN-841c0f
Reliable High Temp Stainless Steel Line Vac Conveyor for efficient material transfer. Compact, durable, and versatile design.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
High Temperature Stainless Steel Line Vac Conveyor - 1-1/4" Inlet/Outlet Diameter
$699.99
Quantity: 1
Claim Your Seller Account
High Temperature Stainless Steel Line Vac Conveyor - 1-1/4" Inlet/Outlet Diameter
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

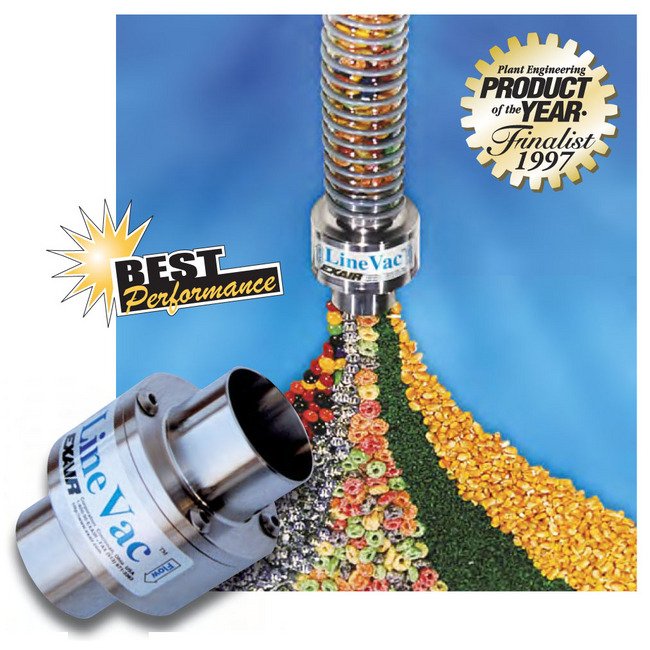

The High Temperature Stainless Steel Line Vac Conveyor is a reliable and cost-effective solution for conveying a wide range of materials including plastics, textiles, food products, and more. Constructed from Type 303 Stainless Steel, this conveyor boasts exceptional durability and can withstand temperatures up to 900°F. With its compact design and large throat diameters, it offers high throughput capability and connects easily to standard hoses or tubes. This conveyor is available in eleven sizes in aluminum and ten sizes in stainless steel, making it versatile for various transfer applications.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
25.90 SCFM | 733 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
1.25 in | 32 mm
Specifications Inlet Size
1-1/4 in | 32 mm
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
High Temperature Type 303 Stainless Steel
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2.38 in | 61 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
900 ºF | 482 ºC
Specifications Vacuum Pressure
-42 inWc | -11 kPa
