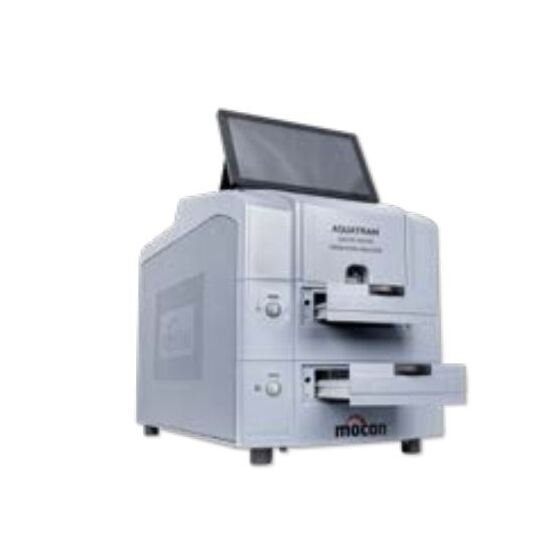

The Aquatran® Model 3/38 H Water Vapor Permeation Analyzer is a cutting-edge solution designed for laboratories requiring high throughput WVTR testing for barrier films. With its unique four-cell capability, this analyzer can simultaneously test four barrier samples, doubling the throughput of traditional instruments. Featuring advanced software enhancements for improved laboratory efficiency, this analyzer shares ease-of-use and automated testing features with the popular PERMATRAN-W® 3/34 permeation analyzers.
Product Specifications
Accessories Accessories
PermWare⢠software is available to collect and manage test data.Additional cartridges allow samples to be prepared and staged for a quick change out to increase efficiency.10" color touch-screen.
Additional Information Additional Information
The QC Test mode simplifies routine testing for the operators while the Conditioning Test Mode decreases overall testing time. These unique test modes can dramatically increase the efficiency and overall testing capacity of your lab making it the perfect solution for the busy QC lab supporting production operations.
Applications Applications
The Aquatran® 3/38 H is designed for quality control laboratories where abbreviated WVTR testing is performed. Due to its simplified operation it is best suited for routine testing at set conditions. Target application is QC WVTR testing of barrier film samples in humidified conditions from 20º to 40 ºC.The analyzer provides the ability to perform triplicate testing with or without a reference film in the same test. The option to run a known standard as a control ensures high confidence in the WVTR results. Whether you need to conform to triplicate standards, or just want to make sure you have consistent results, the 3/38 H can meet your needs.
Dimensions And Weight Depth
23 in | 58.0 mm
Dimensions And Weight Height
15.5 in | 39.4 mm
Dimensions And Weight Weight
95 lb | 43.1 kg
Dimensions And Weight Width
12 in | 30.4 mm
Dual Film Cartridge Dual Film Cartridge
This innovation from AMETEK® MOCON® combines two test cells into one cartridge. Similarly sized to the current test cartridge, this single cartridge can test two film samples at the same time. The new design has a standard 50 cm² testing area and our exclusive TruSeal® in both the upper and lower cells. The TruSeal® design utilizes two seals and flushes gas between them to prevent ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.
Easy To Use Easy To Use
QC Test mode. Starts tests in a single button.Test results give Pass, Fail or Warning.Touch screen with easy options.Stored test method library.
High Capacity High Capacity
The high throughput model with four cells has the same compact footprint as our other permeation analyzers, with the testing capacity of more than twice of the older legacy models. The Conditioning Test mode further increases the instrument testing throughput by phasing the exam times to provide convergence data in as low as 1/2 the time compared to normal testing mode.
High Throughput High Throughput
4 test cells in one analyzer.Removable horizontal film cartridges.Short exam times.Conditioning Test Mode.
Low Cost Low Cost
Get 4 cells at a comparable price to many 2 cell analyzers.Lower maintenance cost per cell.Long life modulated IR sensor.
Modulated Infrared Ir Sensor Technology Modulated Infrared Ir Se
Using a patented modulated infrared (IR) technology, this sensor provides accurate and repeatable results with the longest life of any WVTR sensor on the market. Itâs the only modulated sensor system on the market to meet the ASTM F1249 standard.
Next Generation Features Next Generation Features
Large touch screen (Optional).Fully automated exams.Removable test cartridges.TruSeal® gas flushing.Automatic sensor protection.
Performance Specifications Controlled Relative Humidity Rh Testi
3 %
Performance Specifications Maximum Film Thickness
0 to 0.5 mm | 0 to 20 mil
Performance Specifications Test Gas
Nitrogen (99.7% N2 or better)
Performance Specifications Test Temperature Range
20 to 40 ºC
Performance Specifications Test Temperature Tolerance
0.2 ºC
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | PERM-NET Lite⢠for Remote Monitoring
Specifications Industry Standards
American Society for Testing and Materials (ASTM) F-1249 | International Organization for Standardization (ISO) 15106-2 | Japanese Industrial Standards (JIS) K-7129 Films | National Standard (Recommended) (GB/T) 26253-2010 | Technical Association of the Pulp and Paper Industry (TAPPI) T557
Technical Specifications Repeatability
0.05 g/(m²·day) | 2 %
Technical Specifications Resolution At 50 Square Centimeter Cm
0.0001 g/(m²·day)
Technical Specifications Test Range For Masked Model 50 Cm
0.5 to 1000 g/(m²·day) | 0.03 to 64.5 g/(100 in²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.05 to 100 g/(m²·day) | 0.003 to 6.45 g/(100 in²·day)
User Friendly User Friendly

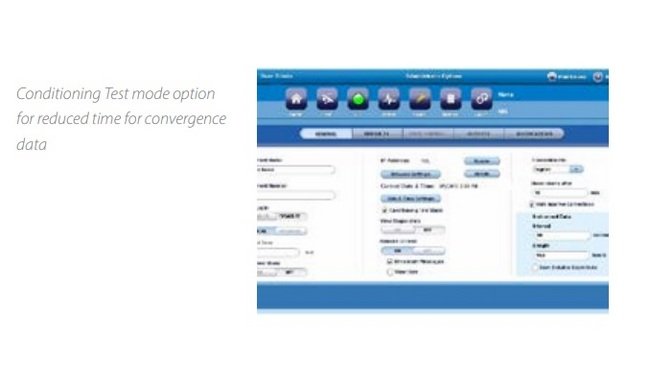

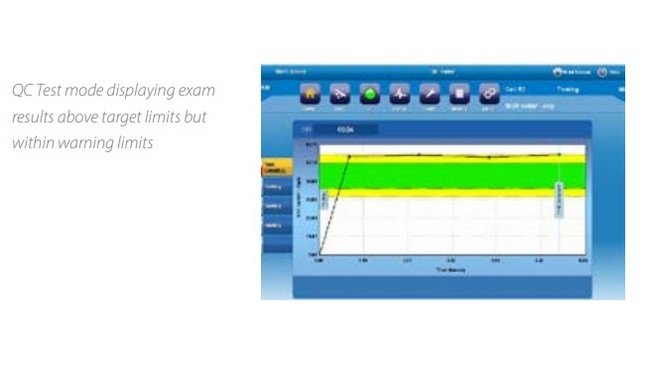

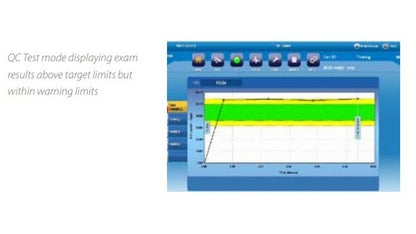

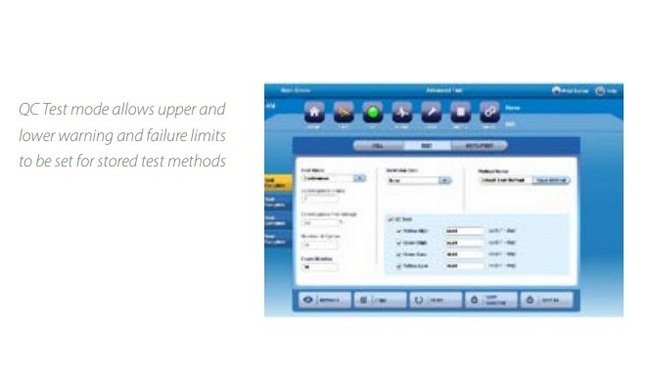

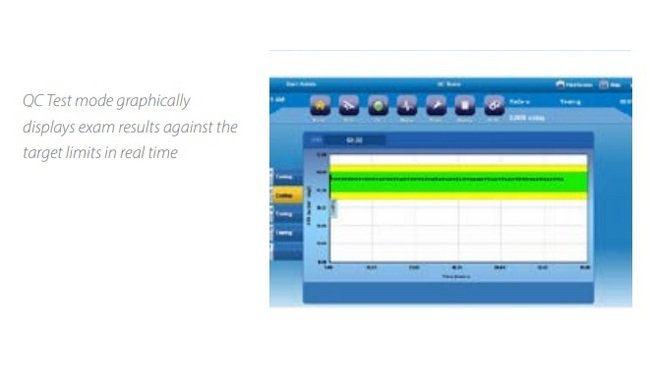

The QC Test mode provides operators the real time status of each test by displaying the target and failure limits while tests are being run. Test methods for commonly performed tests can be set up and stored by an administrator. With a simple touch of a button operators can recall and start test methods in seconds. Final test reports clearly display the results of the test as Green (Pass), Yellow (Warning) or Red (Fail) eliminating the need to look up the target values and meaning for each test performed.The Conditioning mode option allows phasing of tests by prioritizing the examinations on samples as they approach convergence while other samples are being conditioned. This provides results in less time than normal sampling mode, helping to increase the throughput of the analyzer.
Warranty Warranty
Full 100% parts and workmanship warranty for 12 months.Exclusive 4-year warranty on the modulated IR sensor.
