High-Torque Dual Flange CB Elements (Sizes 12-45)
High-Torque Dual Flange CB Elements (Sizes 12-45)
SKU:CLU-7e10a2
Enhance torque capacity with our High-Torque Dual Flange CB Elements. Ideal for heavy-duty applications. Meets government and institutional standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
High-Torque Dual Flange CB Elements (Sizes 12-45)
$499.99
Quantity: 1
Claim Your Seller Account
High-Torque Dual Flange CB Elements (Sizes 12-45)
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience double the torque capacity with our High-Torque Dual Flange CB Elements. These elements, available in sizes 12CB350 to 45CB525, can be bolted together for enhanced performance. With a torque rating of 39400 lb·in|4450 Nm and a maximum speed of 1800 rpm, these elements ensure reliable operation. Their durable construction and precision design make them ideal for heavy-duty applications. Additionally, they meet stringent government and institutional procurement standards, ensuring compliance and quality assurance for all your needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

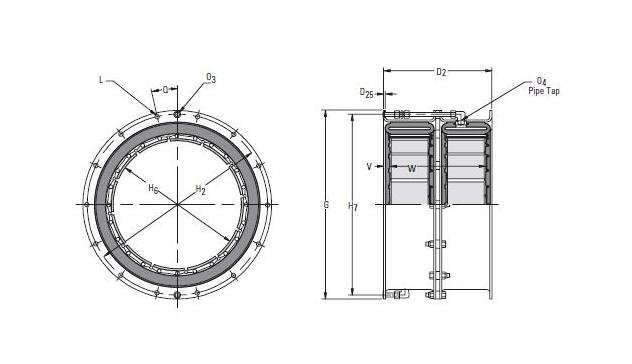

Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
140 in³ | 2.30 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.375 in | 10 mm
Specifications Centrifugal Loss Constant Cs
1.04 E-06 bar/rpm2 | 15 E-06 psi/rpm2
Specifications Dimension D2
11.13 in | 283 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
19.625 in | 498.5 mm
Specifications Dimension H2
18.875 in | 479.4 mm
Specifications Dimension H6
14.13 in | 359 mm
Specifications Dimension H7
18.88 in | 479 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
340 in² | 2193 cm²
Specifications Friction Shoe Width W
9.75 in | 248 mm
Specifications Inertia
42 lb·ft² | 1.76 kg·m²
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
13.9 in | 353 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
28
Specifications Number Of Mounting Holes
16
Specifications Size
14CB400
Specifications Torque Rating 75 Psi55 Bar
39400 lb·in | 4450 Nm
Specifications Weight
75 lb | 34 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
