The High-Torque Dual Flange CB Elements (Sizes 12 to 45) offer unparalleled strength and versatility for industrial applications. By bolting two dual flanged elements together, you can create a dual element with double the torque capacity compared to a single element, ranging from 22CB500 to 45CB525. With a robust torque rating of 124600 lb·in | 14100 Nm and a maximum speed of 1250 rpm, these elements deliver exceptional performance and reliability. Designed for efficiency and durability, they feature a friction area of 624 in², a new friction lining thickness of 0.26 in, and a sturdy construction weighing 194 lb | 88 kg. Meet your high-torque needs with precision and power using these cutting-edge Dual Flange CB Elements.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

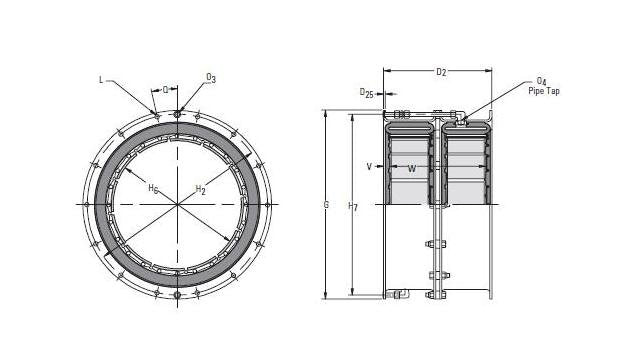

Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
380 in³ | 6.23 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.93 E-06 bar/rpm2 | 28 E-06 psi/rpm2
Specifications Dimension D2
13.63 in | 346 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
29.500 in | 749.3 mm
Specifications Dimension H2
28.375 in | 720.7 mm
Specifications Dimension H6
22.19 in | 564 mm
Specifications Dimension H7
28.38 in | 721 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
624 in² | 4025 cm²
Specifications Friction Shoe Width W
12.00 in | 305 mm
Specifications Inertia
233 lb·ft² | 9.79 kg·m²
Specifications Maximum Speed
1250 rpm
Specifications Minimum Drum Diameter
21.87 in | 555 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
26
Specifications Number Of Mounting Holes
12
Specifications Size
22CB500
Specifications Torque Rating 75 Psi55 Bar
124600 lb·in | 14100 Nm
Specifications Weight
194 lb | 88 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
