High-Torque Dual Flange CB Elements (Variety of Sizes)

High-Torque Dual Flange CB Elements (Variety of Sizes)

CLU-6dc0e0

Enhance machinery torque with High-Torque Dual Flange CB Elements. Double the capacity, sizes 12CB350 to 45CB525. Superior performance.

$799.99
$799.99
Sale

Initiate Order

High-Torque Dual Flange CB Elements (Variety of Sizes)

High-Torque Dual Flange CB Elements (Variety of Sizes)

$799.99

Quantity: 1

Claim Your Seller Account

High-Torque Dual Flange CB Elements (Variety of Sizes)

High-Torque Dual Flange CB Elements (Variety of Sizes)

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your machinery with our High-Torque Dual Flange CB Elements. By bolting two dual flanged elements together, you double the torque capacity. Available in various sizes from 12CB350 to 45CB525, our elements boast a torque rating of 107200 lb·in, maximum speed of 1300 rpm, and meet high industry standards for durability and performance. With a friction area of 576 in² and a weight of 180 lb, these elements deliver unmatched reliability and efficiency for your clutch and brake systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

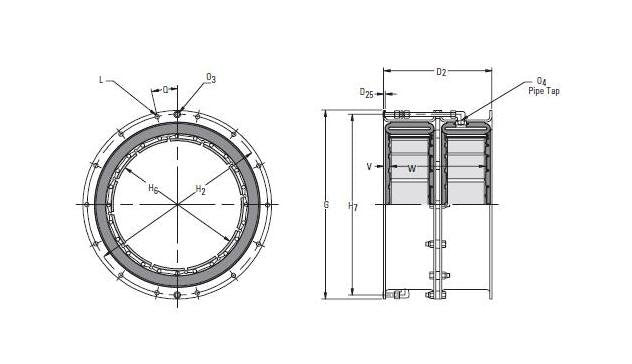

Product Specifications

Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
340 in³ | 5.58 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.73 E-06 bar/rpm2 | 25 E-06 psi/rpm2
Specifications Dimension D2
13.63 in | 346 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
27.500 in | 698.5 mm
Specifications Dimension H2
26.375 in | 669.9 mm
Specifications Dimension H6
20.19 in | 513 mm
Specifications Dimension H7
26.38 in | 670 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
576 in² | 3715 cm²
Specifications Friction Shoe Width W
12.00 in | 305 mm
Specifications Inertia
185 lb·ft² | 7.77 kg·m²
Specifications Maximum Speed
1300 rpm
Specifications Minimum Drum Diameter
19.87 in | 505 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
24
Specifications Number Of Mounting Holes
12
Specifications Size
20CB500
Specifications Torque Rating 75 Psi55 Bar
107200 lb·in | 12100 Nm
Specifications Weight
180 lb | 82 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
