High Torque ERP Continuous Rope Puller
High Torque ERP Continuous Rope Puller
SKU:RIG-7000b1
High Torque ERP Continuous Rope Puller for controlled pulling and constant torque. All-weather use, durable steel construction.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
High Torque ERP Continuous Rope Puller
$1,899.99
Quantity: 1
Claim Your Seller Account
High Torque ERP Continuous Rope Puller
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

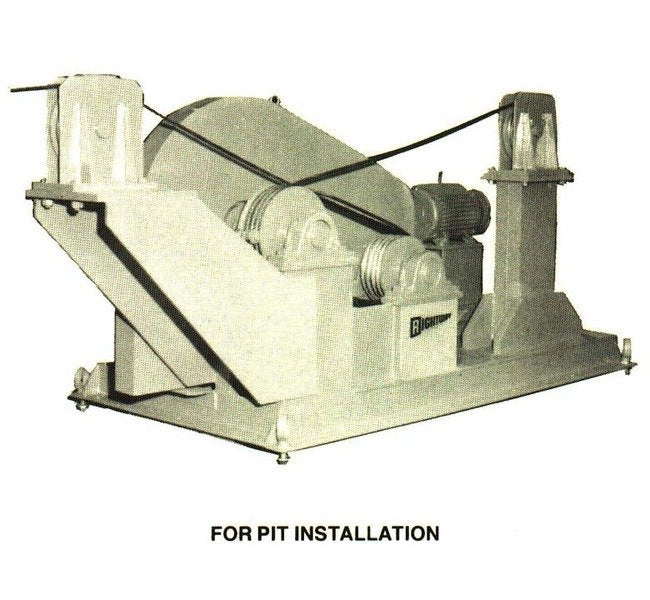

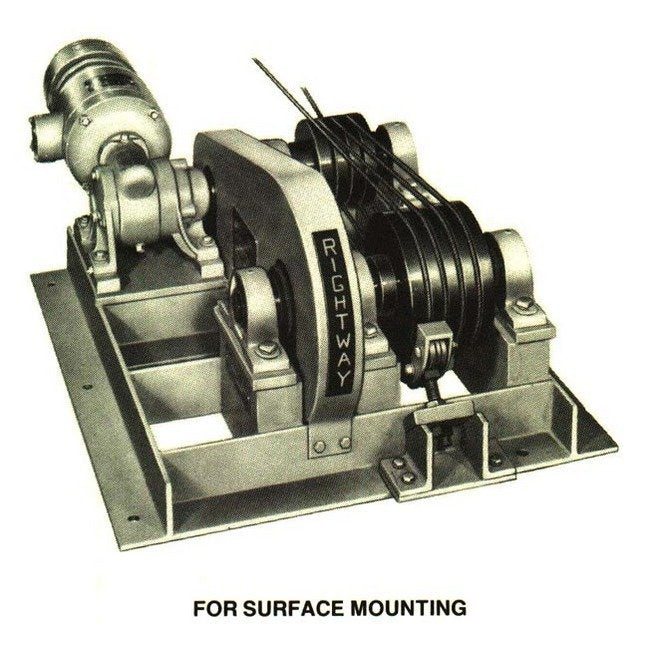

The High Torque ERP Continuous Rope Puller is a robust solution designed for long-distance car pulling or fixed closed loop hoisting applications. With a starting capacity of 1000 lbs. and running capacity of 500 lbs., this rope puller ensures controlled pulling, stopping, and spotting. Featuring a 1 HP motor, constant speed, and torque, it offers all-weather usability and positive traction without requiring a counterweight. Mount it conveniently in any location for efficient operation. The steel drum and base ensure maximum durability with a minimum 5 to 1 structural safety factor, meeting stringent industry standards for safety and reliability.
Product Specifications
Specifications Capacity Running
500 lbs.
Specifications Capacity Starting
1000 lbs.
Specifications Line Speed
50 FPM
Specifications Model
ERP Continuous Rope Puller
Specifications Motor 230460 3 60 Electric
1 HP
Specifications Net Weight
645 lbs.
Specifications Winch Height
20 inches
Specifications Winch Length
40 inches
Specifications Winch Width
30 inches
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Distance unlimited constant speed, constant torque All weather use is ideal for rugged model erp continuous puller Controlled pulling, stopping and spotting Counterweight not required positive traction Mounting at any convenient location Ideally suited for long distance car pulling or fixed closed loop hoisting Rope leads from one side or single lead from opposite sides of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
