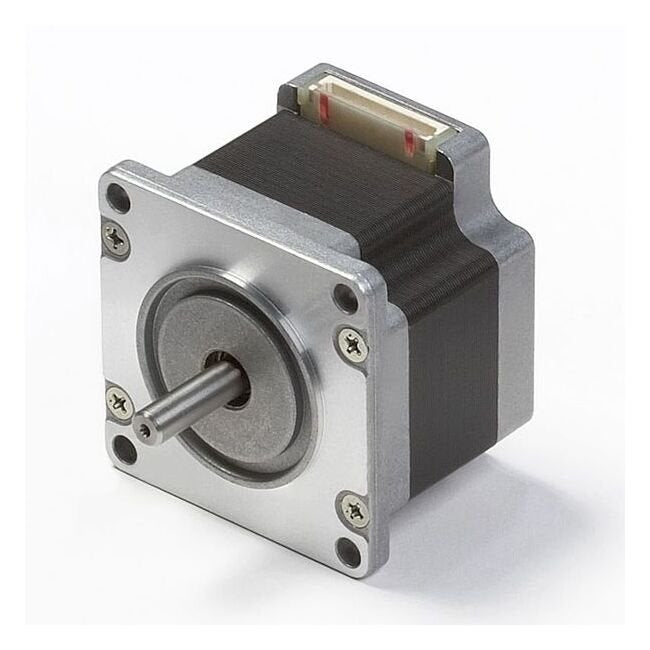

High Torque NEMA 23 Hybrid Stepping Motor - KH56JM2 Series
$69.99
Quantity: 1
Claim Your Seller Account
High Torque NEMA 23 Hybrid Stepping Motor - KH56JM2 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KH56JM2 Series 2-Phase Hybrid Stepping Motor offers enhanced performance with stronger torque at higher speeds, reduced vibration, and improved efficiency. With a step angle of 1.8 degrees/step and a voltage of 5.46V, this motor delivers precise motion control. Its enhanced construction materials elevate its efficiency by 1.1 times compared to previous models. The motor's dual shaft design, 2.0A current per phase, and holding torque of 187 oz·in make it ideal for a wide range of applications.
Product Specifications
Additional Information 0
Connection Diagrams | Driver Selection Guide | Explanation of Dynamic Torque Curves | Motor Selection Guide | System Configuration
Customize 0
Custom Designs
Dimensions 0
Connection Cable to Motor-Unipolar | Dimensions
Specifications Allowable Temperature Range
70 ºK
Specifications Current Per Phase
2.0 A
Specifications Detent Torque
9.8 oz·in | 69 mN·m
Specifications Dielectric Strength
500 VAC, 50 HZ, 1 min.
Specifications Drive Method
Unipolar
Specifications Holding Torque
187 oz·in | 1324 mN·m
Specifications Inductance Per Phase
5.4 mH
Specifications Insulation Class
JIS Class E (120ºC/248ºF) | UL Value : Class B (130ºC/266ºF)
Specifications Insulation Resistance
500 VDC, 100 MO min.
Specifications Motor Frame Size
NEMA 23
Specifications No Of Phases
2
Specifications Operating Temperature Range
0 to 50 ºC
Specifications Product Type
Hybrid Stepping Motor
Specifications Rotor Inertia
1.47 oz·in² | 269 g·cm²
Specifications Series
2 Phase Square KH
Specifications Shaft Specification
Double Shaft
Specifications Step Angle
1.8 deg./step
Specifications Voltage
5.46 V
Specifications Weight
1.0 g | 2.2 lb
Specifications Winding Resistance Per Phase
2.73 Ω
Torque Curve 0
