High-Voltage 155mm Ceramic Capacitor - SPHT Power Disk
High-Voltage 155mm Ceramic Capacitor - SPHT Power Disk
SKU:CER-f53ce2
Enhance power systems with high-voltage SPHT 155mm Ceramic Capacitors. Reliable, precise, and versatile for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage 155mm Ceramic Capacitor - SPHT Power Disk
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage 155mm Ceramic Capacitor - SPHT Power Disk
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

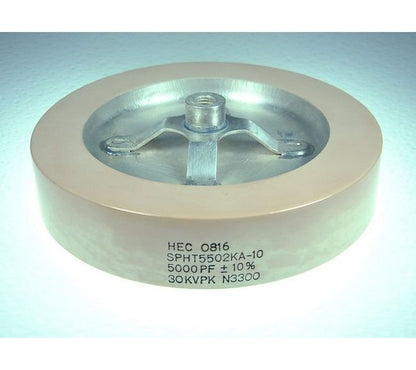

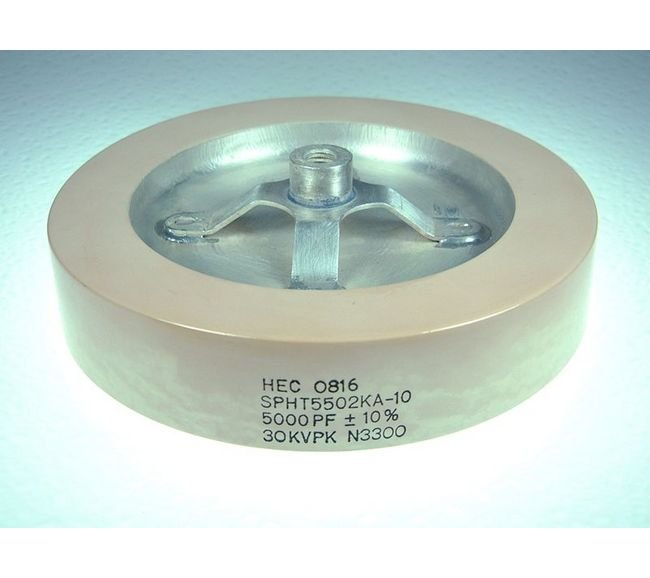

Upgrade your power systems with the SPHT 155 mm Diameter Power Disk Ceramic Capacitors. With a robust design offering up to 30 kVDC working voltage and a power rating of up to 90 kVA, these capacitors ensure reliable performance under high-stress conditions. Choose from 50 to 7000 pF capacitance options in 70, 100, 140, and 155 mm diameters. Featuring Class I TC options like N3300, these capacitors deliver precision and stability for critical applications.
Product Specifications
Specifications Cap
4000 pF

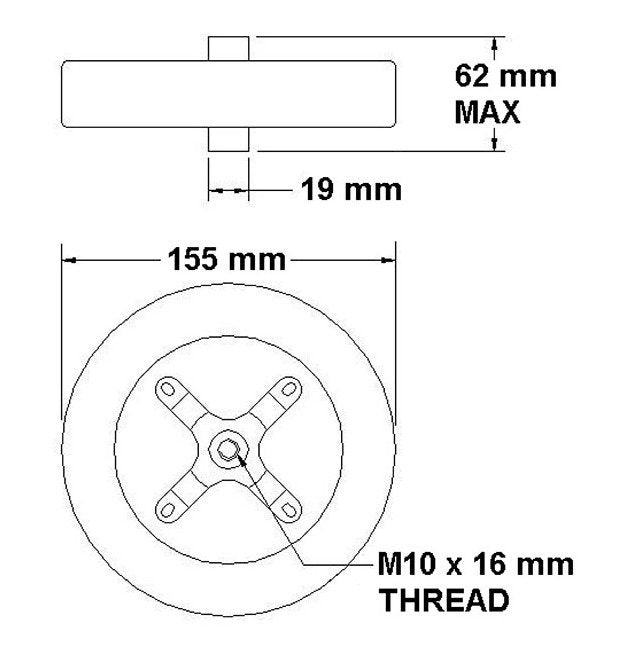

Specifications Diameter
155 mm
Specifications Dielectric Tc
N3300
Specifications Fh
0.0994 MHz
Specifications Fl
0.00795 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
