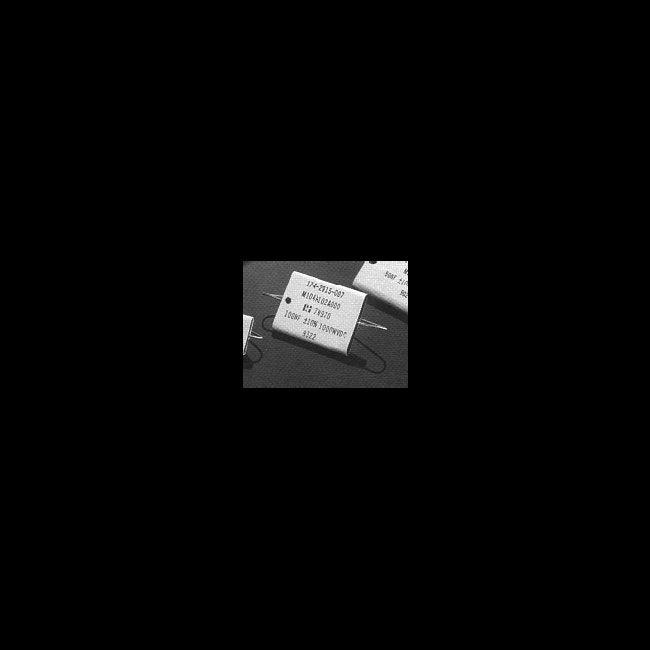

High Voltage 2.5 kVDC Mica Capacitors
High Voltage 2.5 kVDC Mica Capacitors
SKU:HIG-f2e151
High-performance 2.5 kVDC Mica Capacitors with ±10% capacitance tolerance and superior voltage rating, ideal for high energy devices.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage 2.5 kVDC Mica Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage 2.5 kVDC Mica Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience enhanced capacitance performance with our Standard Micapacitors 2.5 kVDC Rated. Featuring a capacitance tolerance of ±10%, high dielectric withstanding voltage of 2.5 kV, and excellent insulation resistance properties, these capacitors deliver reliability and efficiency. With dimensions of 1.94" x 1.15" x 0.18" and wire leads for easy installation, these capacitors are ideal for high energy applications. Our product meets stringent industry standards for quality and performance, making it a trusted choice for both consumer and institutional buyers.
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
50 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
2.5 kV rated | 3.75 kV burn-in for 2 hours at 100°C | 5.0 kV proof for 5 seconds
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

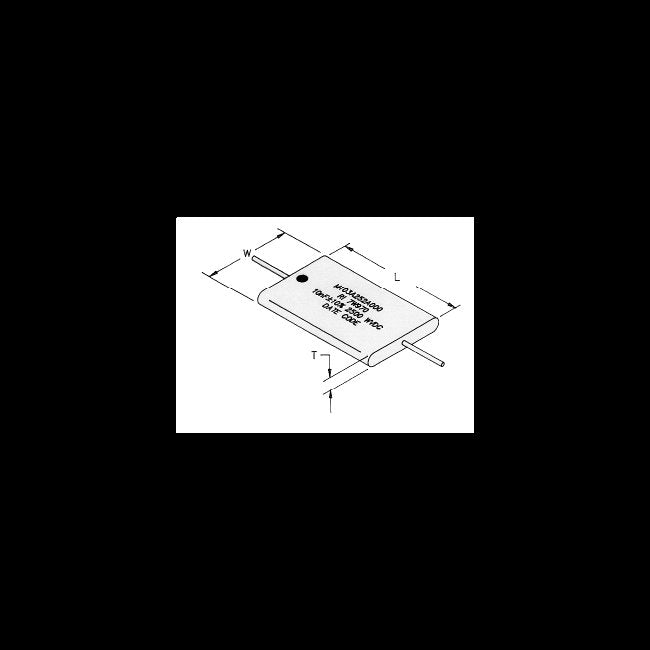

Specifications Length
1.94 in | 49.3 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.18 in | 4.7 mm
Specifications Voltage Rating
2.5 kVDC
Specifications Width
1.15 in | 29.2 mm
