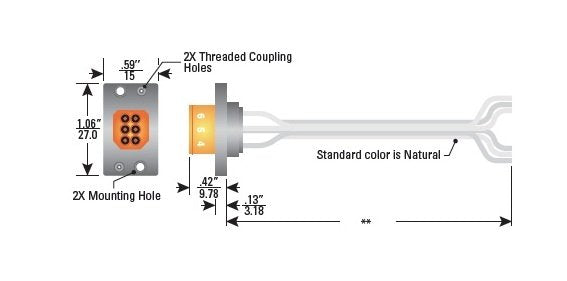

High Voltage 6 Pin Single Ended Front Mount Receptacle Cable Assembly
High Voltage 6 Pin Single Ended Front Mount Receptacle Cable Assembly
SKU:HIG-0b79f8
Enhance connectivity with our High Voltage 6 Pin Receptacle Cable Assembly. Ideal for Radar, ECM systems, and lasers. Pre-assembled for convenience.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage 6 Pin Single Ended Front Mount Receptacle Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage 6 Pin Single Ended Front Mount Receptacle Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled connectivity with our High Voltage 6 Pin Single Ended Receptacle Cable Assembly from the JR Series. Engineered for reliability in Radar, ECM systems, laser technology, and more, this pre-assembled plug features a thermoplastic insulator, silicone Advanced Interface Seals, and nickel-plated aluminum bodies. With a 6 kVDC voltage rating, Altitude Rating of 70,000 ft, and operating temperature range of -55 to 125°C, this cable assembly is a robust solution for demanding applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Cable Wire Properties Jacketed
No
Contact Properties Contact Design
Spherical Radius
Contact Properties Contact Diameter
0.020 in
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Applicable Mate
178-8363
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Jack Screw
Specifications Current Rating
5 A
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
6
Specifications Operating Temperature
-55 to 125 ºC

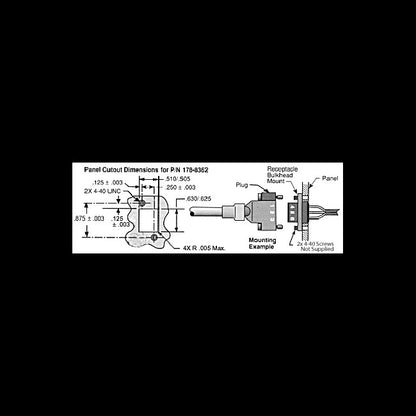

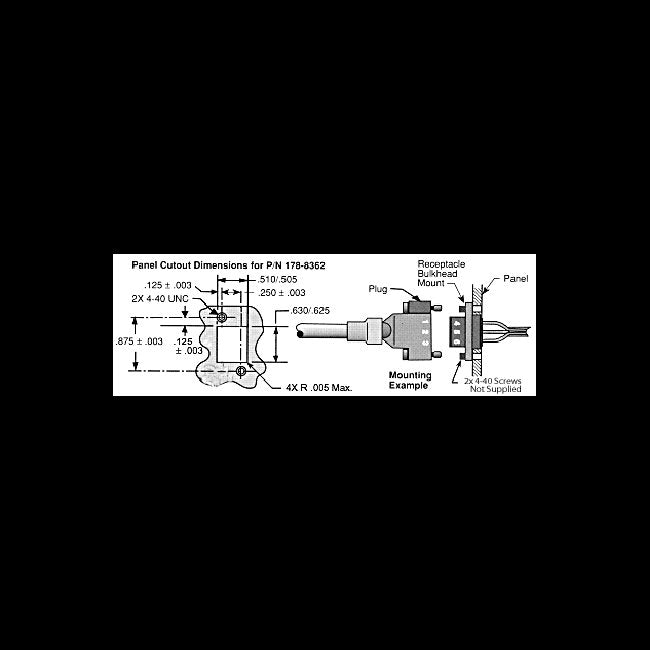

Specifications Panel Mounting Style
Front Mount
Specifications Sealed Receptacle
Yes
Specifications Series
JR
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
9 kVDC
Specifications Voltage Rating
6 kVDC
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.58 in | 1.48 mm
Wire Specifications Operating Voltage
18 kVDC
Wire Specifications Part
178-8410
