High Voltage 600 Series Hex Plug Cable Assembly

High Voltage 600 Series Hex Plug Cable Assembly

SKU:HIG-15de11

Highly reliable High Voltage 600 Series Hex Plug Cable Assembly for Aerospace/Defense & commercial use. Voltage rating: 5 kVDC. Altitude: 70,000 ft. Meets industry standards.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

High Voltage 600 Series Hex Plug Cable Assembly

High Voltage 600 Series Hex Plug Cable Assembly

$39.99

Quantity: 1

Claim Your Seller Account

High Voltage 600 Series Hex Plug Cable Assembly

High Voltage 600 Series Hex Plug Cable Assembly

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

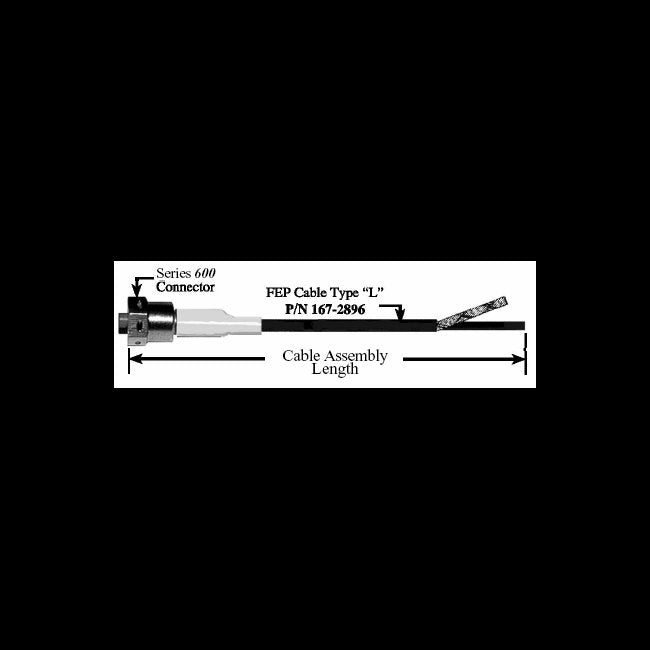

The High Voltage 600 Series Hex Plug Cable Assembly is a subminiature, coaxial connector designed for rugged Aerospace/Defense and commercial applications. With a voltage rating of 5 kVDC and altitude tolerance up to 70,000 ft., this connector is highly reliable and suitable for demanding environments. Featuring a non-shielded wire type, brass/stainless steel hex coupling nut, and BeCu contacts with gold finish, it ensures secure connections and optimal performance. This connector meets stringent industry standards and is ideal for high-end applications requiring compact yet high-voltage connectors.

Product Specifications

Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Non-Shielded
