High Voltage Cable Assembly 521 SL Series, Single-Ended Plug
High Voltage Cable Assembly 521 SL Series, Single-Ended Plug
SKU:HIG-0930dc
Enhanced safety and reliability with High Voltage Cable Assembly 521 SL Series for demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Cable Assembly 521 SL Series, Single-Ended Plug
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly 521 SL Series, Single-Ended Plug
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

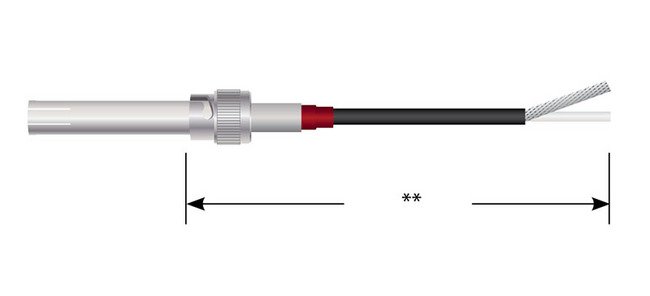

The High Voltage Cable Assembly 521 SL Series is engineered for enhanced user safety and reliability. Featuring recessed contacts for shock prevention, this single-ended plug assembly offers a secure ground circuit with a spring finger body contact. With a voltage rating of 25 kVDC at altitude and 20 kVDC at sea level, it undergoes rigorous testing at 41 kVDC. Designed with a bayonet coupling style, brass coupling nut, and nickel finish, this assembly ensures secure connections in high voltage applications. Operating between -40 to 85 °C, this shielded assembly is ideal for demanding environments. Ensure safety and performance with the 521 SL Series.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521 SL
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
