High Voltage Cable Assembly C 750 Non-Positive Stop Washers
High Voltage Cable Assembly C 750 Non-Positive Stop Washers
SKU:HIG-ca1b41
Reliable high voltage cable assembly with 50 kVDC rating, Single-Ended Plug Contact Assembly, and threaded coupling for secure connections.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Voltage Cable Assembly C 750 Non-Positive Stop Washers
$99.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly C 750 Non-Positive Stop Washers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 750 Cable Assembly Non-Positive Stop (washers) is a reliable solution for high voltage applications, with a voltage rating of 50 kVDC. Featuring a Single-Ended Plug Contact Assembly type, this assembly offers a current rating of 10 A and operates in temperatures ranging from -55 to 95 °C. The insulator material is high-quality plastic, and it is designed with a threaded coupling style for secure connections. Additionally, this cable assembly is compatible with LGH 4I series receptacles, ensuring seamless integration and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

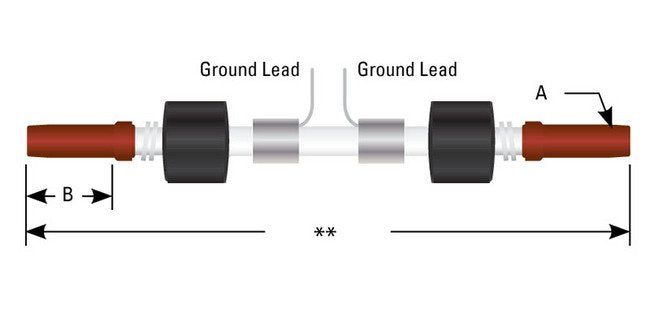

Dimensions A Diameter
.435 in | 11.0 mm
Dimensions B
2.00 in | 50.8 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Contact Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 4I
Specifications Mating Compatibility
All C 750 series receptaclesAll LGH 4I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 750
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
60 kVDC
Specifications Voltage Rating
50 kVDC
Specifications Wire Insulation
White 0.385 Dia. silicone rubber, #AWG 14
Specifications Wire Pn
178-6180
