High Voltage Cable Assembly - C 750 Series Non-Positive Stop Washer
High Voltage Cable Assembly - C 750 Series Non-Positive Stop Washer
SKU:HIG-876179
Advanced high voltage cable assembly with 50 kVDC rating, BeCu contacts, and LGH 4I compatibility for demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Cable Assembly - C 750 Series Non-Positive Stop Washer
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly - C 750 Series Non-Positive Stop Washer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 750 Cable Assembly Non-Positive Stop (washers) is a high-quality, high voltage single pin connector designed for demanding applications. With a voltage rating of up to 50 kVDC and a current rating of 10 A, this assembly is built to withstand extreme conditions with an altitude/reduced pressure rating of 70,000 ft. Featuring BeCu contact material with gold finish, threaded coupling style, and plastic insulator material, it ensures reliable performance. This assembly is designed for compatibility with LGH 4I series receptacles and offers temperature resistance from -55 to 95 ºC. Meeting non-standard part standards, this cable assembly is ideal for critical institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

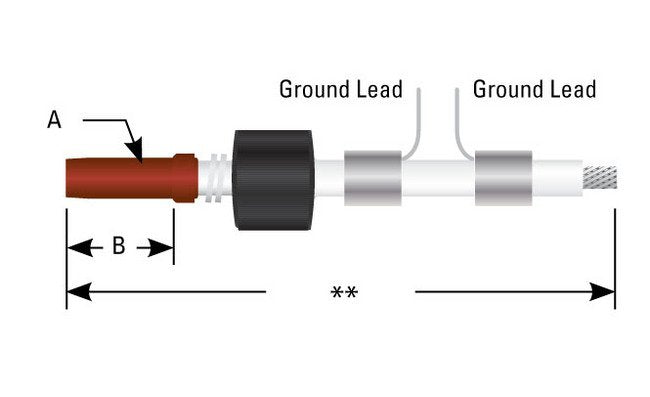

Dimensions A Diameter
.435 in | 11.0 mm
Dimensions B
2.00 in | 50.8 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 4I
Specifications Mating Compatibility
All C 750 series receptaclesAll LGH 4I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 750
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
60 kVDC
Specifications Voltage Rating
50 kVDC
Specifications Wire Insulation
White 0.385 Dia. silicone rubber, #AWG 14
Specifications Wire Pn
178-6180
