High Voltage Cable Assembly C727 with Non-Positive Stop Washers

High Voltage Cable Assembly C727 with Non-Positive Stop Washers

HIG-b9a626

High Voltage Cable Assembly C727 - 25kVDC, 10A, Double-Ended Plug Contact, ROHS Compliant

$89.99
$89.99
Sale

Initiate Order

High Voltage Cable Assembly C727 with Non-Positive Stop Washers

High Voltage Cable Assembly C727 with Non-Positive Stop Washers

$89.99

Quantity: 1

Claim Your Seller Account

High Voltage Cable Assembly C727 with Non-Positive Stop Washers

High Voltage Cable Assembly C727 with Non-Positive Stop Washers

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Voltage Cable Assembly C727 with Non-Positive Stop Washers is a reliable solution for high voltage applications, offering a double-ended plug contact assembly. With a voltage rating of 25 kVDC and current rating of 10 A, this cable assembly ensures efficient power transmission. Operating within a temperature range of -55 to 95°C, it is designed for durability and performance in challenging environments. Compliant with ROHS standards and featuring insulator material of plastic, this assembly meets stringent industry requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

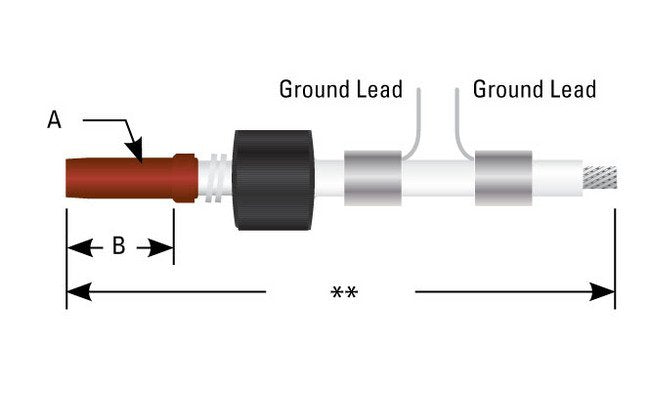

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
1.69 in | 42.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Contact Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Compatibility
All C 727 series receptaclesAll series 727 receptaclesAll LGH 1LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 727
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
35 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-6147
