High Voltage Cable Assembly Non-Positive Stop Single-Ended Plug
High Voltage Cable Assembly Non-Positive Stop Single-Ended Plug
SKU:HIG-6e945e
High-quality High Voltage Cable Assembly for demanding applications. Voltage Rating: 15 kVDC, Current Rating: 10A. Threaded coupling, plastic insulator material.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Cable Assembly Non-Positive Stop Single-Ended Plug
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly Non-Positive Stop Single-Ended Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 737 Cable Assembly Non-Positive Stop Single-Ended Plug is a high-quality, standard part designed for demanding high voltage applications. With a voltage rating of 15 kVDC and a current rating of 10 A, this cable assembly ensures reliable performance in extreme operating conditions (-55 to 95 °C). The assembly is threaded for secure coupling and features insulator material made of plastic. Mating compatibility includes all C 737 lead assemblies, all Series 737 lead assemblies, and LGH 1/2I lead assemblies. The contact properties boast BeCu with CRES hood and gold contact finish for optimal conductivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

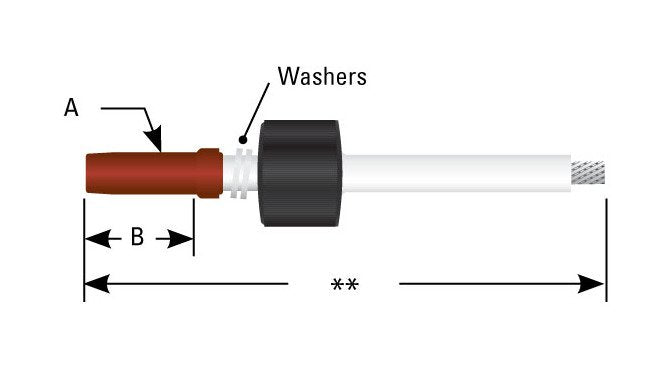

Dimensions A Diameter
.191 in | 4.85 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-6
