High Voltage Cable Assembly Positive Stop Single-Ended Plug - Series C 720
High Voltage Cable Assembly Positive Stop Single-Ended Plug - Series C 720
SKU:HIG-466d32
High Voltage Cable Assembly for secure and reliable connections in demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Cable Assembly Positive Stop Single-Ended Plug - Series C 720
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly Positive Stop Single-Ended Plug - Series C 720
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 720 Cable Assembly Positive Stop Single-Ended Plug is a high-performance solution for applications requiring high voltage connectivity. With a voltage rating of 20 kVDC and a current rating of 10 A, this cable assembly is designed for reliability in demanding environments. Featuring BeCu contacts with gold finish, plastic insulator material, and threaded coupling style, it ensures secure connections. The cable assembly is RoHS compliant and suitable for temperature extremes from -55 to 95°C. Compatible with various receptacles, this standard part offers exceptional quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

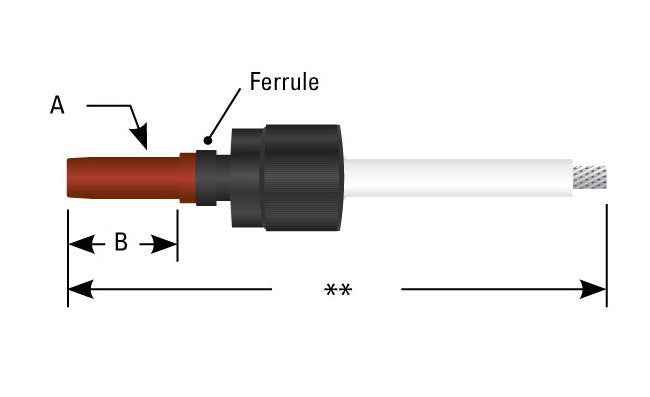

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH LI
Specifications Mating Compatibility
All C 720 series receptaclesAll series 720 receptaclesAll LGH LI series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
White 0.265 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-6
